Bulk storage tanks

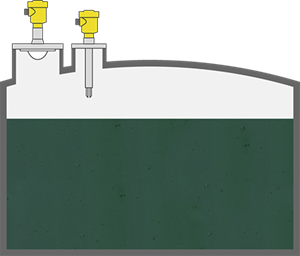

Level measurement and point level detection in bulk storage tanks
Level measurement and point level detection in bulk storage tanks
Process data
Measuring task:
Level measurement and point level detection
Measuring point:
Tank
Measuring range up to:
20 m
Medium:
Liquid primary and intermediate chemicals
Process temperature:
-40 … +200 °C
Process pressure:
-1 … +20 bar
Special challenges:
Changing media
Application
Dependable storage is not only the basis for reliable production and supply, it also protects against raw material shortages and price volatility. In addition to regulations on the use of overfill protection or safety instrumented systems, large storage tanks are also often subject to hazardous area codes of practice in conjunction with level measurement.
Your benefit
Reliable
Reliable protection against overfilling
Cost effective
Independent of product and process characteristics
User friendly
Simple setup and commissioning, maintenance-free
Recommended products
VEGAPULS 6X
Continuous level measurement with radar in bulk storage tanks
- Reliable measurement, independent of density and temperature changes
- Excellent signal focusing ensures high accuracy
- Long service life thanks to maintenance-free operation
Measuring range - Distance
120 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
VEGASWING 63
Point level detection with vibrating level switch for overfill protection in bulk storage tanks
- Universally applicable as overfill and dry run protection system for virtually all liquid applications
- Accurate level detection thanks to adjustment-free, media-independent switching point
- Highly resistant materials and coatings for long operational life
- Test button for easy testing of instrument functionality during operation
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 64 bar
Version
Standard
Hygienic applications
with gas-tight leadthrough
with tube extension
with temperature adapter
