Filling silo for colour pigment
Level measurement and point level detection in colour pigment packing
|
|
Process data
Measuring task:
Level measurement and point level detection
Measuring point:
Silo
Measuring range up to:
12 m
Medium:
Colour pigment
Process temperature:
-40 ... +50 °C
Process pressure:
0 … 0 bar
Special challenges:
Intense dust generation
Application

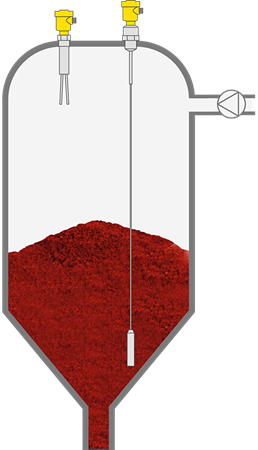

In the last production step, the finished pigment powders are pneumatically conveyed into packing silos.
The conveying system generates very high dust levels and air movement inside the silos. To control the filling process, the levels in the silos need continuous monitoring. A high level detection switch is used for safety shutdown in case of overfilling. The pigment powder is then filled into sacks via the bottom outlet.
Your benefit
Reliable
High measurement reliability, even in extremely dusty environments
Cost effective
Maintenance-free operation
User friendly
Simple to set up
Recommended products
VEGAFLEX 82
Continuous level measurement with guided radar in filling silo
- Accurate measurement despite extremely dusty environment
- Reliable level measurement, even in media with low dielectric constant
- Simple and fast setup with display and adjustment module
Measuring range - Distance
75 m
Process temperature
-40 ... 200 °C
Process pressure
-1 ... 40 bar
VEGAWAVE 63
Vibrating level switch for protection against overfilling
- Simple setup without calibration
- Reliable detection despite changing density of the medium
- Dependable function thanks to product-independent switching point
Measuring range - Distance
-
Process temperature
-50 ... 250 °C
Process pressure
-1 ... 25 bar
