VEGACAP 62

Capacitive rod probe for level detection

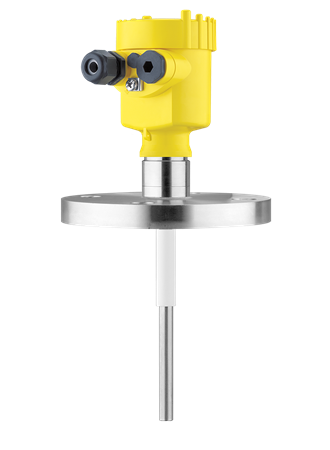

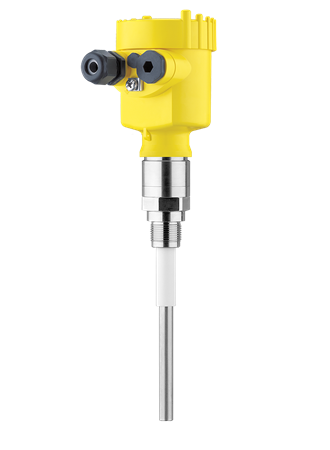

Rod probe, partly PTFE insulated

Application area

For liquids and bulk solids, Sensor length up to 6 m
The VEGACAP 62 is a point level sensor for use in all areas of industry. The partly insulated probe is suitable for measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.

Your benefit

  • High flexibility through shortenable probe
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Universal use in all products

Configure product

Configure product
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 200 °C [°C - °F]
Process pressure
  • -1 ... 64 bar [Bar - kPa - psi]
Version
  • with screening tube PN1
  • Standard
Materials, wetted parts
  • PTFE
  • 316L
  • Alloy 400 (2.4360)
  • PEEK
  • Steel C22.8
Threaded connection
  • ≥ G½, ≥ ½ NPT
Flange connection
  • ≥ DN25, ≥ 1"
Seal material
  • no media contact
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °C
Approvals
Scope
  • ATEX / Europe
  • FM / USA
  • EAC (GOST) / Belarus
  • EAC (GOST) / Kazakhstan
  • EAC (GOST) / Russia
  • IEC / worldwide
  • KOSHA / Korea
  • NEPSI / China
  • UKR Sepro / Ukraine
  • CSA / USA and Canada
  • CCC
Explosion protection
  • Intrinsic safety "i"
  • Flameproof enclosure "d"
  • Dust ignition protection "t"
Foodstuffs/Pharma
  • FDA
Ship approval
  • ABS
  • BV
  • CCS
  • DNV
  • LR
  • RINA
  • RMROS
Overfill protection
  • WHG
  • VLAREM II
SIL qualification
  • SIL2
Display & adjustment
Indication
  • Pluggable display module PLICSLED
