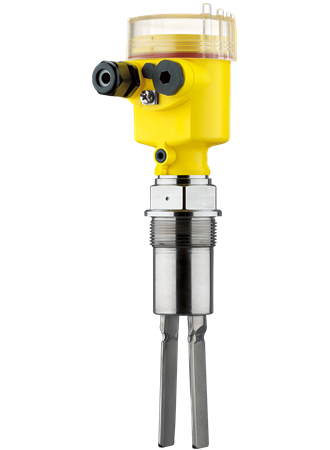

VEGAWAVE S61

Vibrating level switch for granular bulk solids

For granulated bulk solids from density 100 g/l


Electronic „R“ - Relais (DPDT)
Electronic „T“ - Transistor (NPN/PNP)

Application area

Pre-configured lengths of 165, 500, 1000 or 1500 mm available. Limited choice of electronics and approvals.
The VEGAWAVE S61 is a level switch for universal use in powders and fine-grained bulk solids. The level switch detects reliably and robust the min. or max. level. The tuning fork is ideal for use either in adhesive and abrasive products as well as in bulk solids with very low density.

Configure product

Configure product
Application
Technical specifications
Documentation
Configure product

Application area

Application
VEGAWAVE S 61 is used as a level switch in free flowing powders and fine-grained solids and detects reliably and accurately when a point level is reached. The rugged design is ideal for coarse products and can be used under heavier loading conditions than a vibrating rod device. E.g. Grain, fine aggregates and heavy powders such as cement.
