Sludge thickening tank

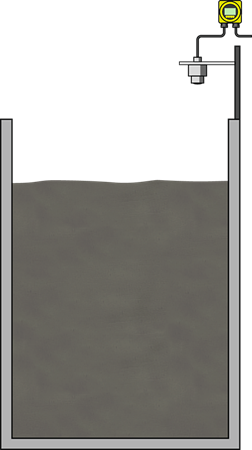

Level measurement in a sludge concentration tank
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Container
Measuring range up to:
0 … 15 m
Medium:
Sludge
Process temperature:
0 ... +30 °C
Process pressure:
0 … 0 bar
Special challenges:
Steam, condensate, buildup
Application
Before the sludge enters the digestion tower, it is stored in large vessels. During storage, the sludge is dewatered and thickened sometimes scrapers and agitators are used to accelerate the process.
Your benefit
Reliable
Reliable content measurement in the sludge thickening tank
Cost effective
Non-contact measurement ensures maintenance-free operation
User friendly
Simple installation and setup
Recommended products
VEGADIS 82
External measured value display in field housing
- Easy-to-read display with plain text and graphics
- Robust housing designed for the harsh conditions in the field
Material de la carcasa
Plástico
Aluminio
Acero inoxidable (fundición)
Tipo de protección
IP66/IP67
Temperatura ambiente
-20 ... 70 °C
VEGAPULS C 21
Continuous level measurement with radar for contents measurement in the receiving container
- Maintenance-free operation through non-contact 80 GHz radar technology
- Exact measuring results independent of product, process and ambient conditions
- High resistance materials ensure a long service life
- Secure wireless operation via Bluetooth with smartphone, tablet or PC
Rango de medición - Distancia
20 m
Temperatura de proceso
-40 ... 80 °C
Presión de proceso
-1 ... 3 bar
