Disposable plastic container

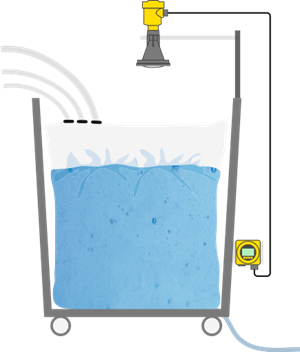

Level measurement in disposable plastic containers
|
|
Dati di processo
Compito di misura:
Level measurement
Punto di misura:
Disposable plastic container
Campo di misura fino a :
2 m
Prodotto:
Media for fermentation
Temperatura di processo:
0 ... +20 °C
Pressione di processo:
0 … +0.2 bar
Sfide particolari:
Measurement through a disposable container, strong condensation of the medium on the inside of the disposable container
Campo d'impiego
When very small product batches are produced in the pharmaceutical industry, disposable plastic containers are often used. These are essentially polymer bags in which a fermentation process takes place or which contain a certain medium or buffer. Continuous level measurement is required to ensure high process efficiency.
I vostri benefici
Reliable
Safe, reliable measurement from the outside through the bag
Cost effective
Time and cost-intensive CIP/SIP cleaning no longer required
User friendly
Simple integration and setup
Prodotti consigliati
VEGAPULS 6X
Level measurement with radar in disposable containers
- Wide dynamic range enables level measurement through plastic
- Reliable measurement, independent of the medium
- No cleaning of sensor necessary, as measurement is done from the outside
Campo di misura - distanza
120 m
Temperatura di processo
-196 ... 450 °C
Pressione di processo
-1 ... 160 bar
VEGADIS 81
External display and adjustment unit for plics® sensors
- Measured value display and sensor adjustment in a readily accessible location
- Simple operation, graphically supported with clearly structured program guidance
- Convenient connection directly to the sensor without further measures
Materiale custodia
Resina
Alluminio
Acciaio speciale (microfusione)
Tipo di protezione
IP66/IP67
Temperatura ambiente
-20 ... 70 °C
