Storage tank for wet strength agent

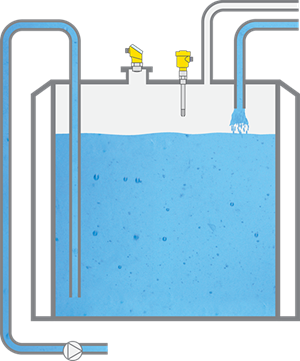

Level measurement and point level detection in the storage tank for wet strength agent
|
|
过程数据
测量任务:
Level measurement and point level detection
测量点:
Tank
测量范围至:
5 m
介质:
Wet strength agent
过程温度:
+20 … +40 °C
过程压力:
0 … 0 bar
特殊挑战:
Aggressive, water contaminating medium, high importance on the availability of the measurements
应用范围
Wet strength agents are polymeric additives that increase the water resistance particularly of hygienic and specialty papers. These are applied in the paper machine via a size press or spraying device. Because of their high pH value, these substances are stored in double-walled GRP (glass reinforced plastic) tanks. For safety and operational reasons, multiple level measurements are needed in these tanks.
您的获益
Reliable
Reliable filling with overfill protection and leak sensors
Cost effective
Maximum utilization of the container volume thanks to continuous level measurement
User friendly
Direct reading of the measured value at the additive station
建议的产品
VEGAPULS 31
在湿固料储罐中借助雷达波来测量物位
- 测量精确，不受温度和介质成分的影响
- 测量精度高，哪怕物位很低
- 因采用非接触式测量法，故运行免维护
量程 - 距离
15 m
过程温度
-40 ... 80 °C
过程压力
-1 ... 3 bar
VEGASWING 63
Vibrating level switch as overfill protection in the storage tank
- Simple function test via keystroke
- WHG-approved instrument provides legal certainty
过程温度
-50 ... 250 °C
过程压力
-1 ... 64 bar
型式
标准
Hygienic applications
with gas-tight leadthrough
带管延长件
with temperature adapter
