石灰供应商用 VEGAPULS 69 来控制熟料的物位
应用概览:熟料冷却器
测量冷却器内部的物位对保持冷却过程的效率和防范溢流很重要。由于冷却器的内部环境恶劣,于是,采矿技术人员使用辐射测量仪表来测量此应用场合的物位。尽管辐射探测器 能够提供可靠的测量值,但其应用遇到了麻烦。

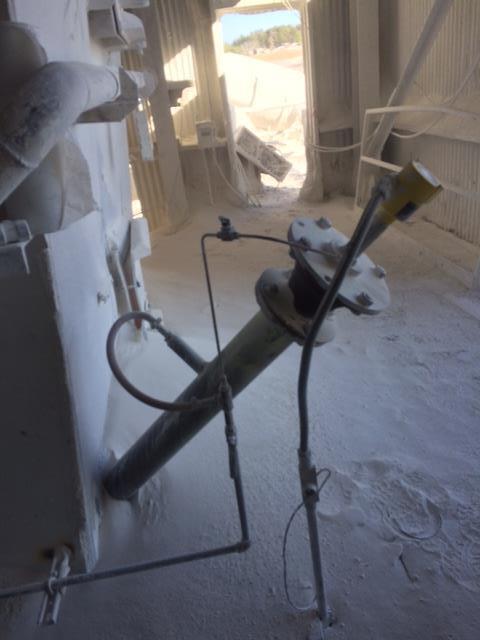

Lhoist 厂区内的熟料冷却器要面对一些异常严峻的挑战,需要特殊的雷达物位传感器来解决。其中一个挑战就是传感器的安装。要在每一台冷却器上安装一根其上安装有传感器的长 1.2 米的管件,以避开冷却器上的异常高热。由于雷达波束会接触管壁并在测量过程中产生较大的干扰信号,因此该管构成了一条通往熟料的狭窄通道。对于大多数固料用雷达传感器而言,这条通道太窄。此外,该管件的安装角度极端,它在冷却器底部的附近对准冷却器的对面壁。
VEGAPULS 69:一个富有创新的解决方案
本应用的参与各方,包括 Lhoist、BBP 和 VEGA 美国公司都有过旧版雷达传感器应用方面的经验,它们在受到异常高热后会熔化。为了避免这种恐怖现象发生并保持熟料冷却器的物位测量有效,安装了空气吹扫装置,以阻挡热空气袭击传感器。自从安装了该装置后,传感器就能可靠地工作了。用户收到的信号清晰,不含干扰回波,可以在最多距离传感器约 1 米的地方测量该介质的物位。
Lhoist 的熟料冷却器要面对异常的挑战,而只能用同样出色的雷达物位传感器才能战胜它们。在合作伙伴 BBP 销售公司和 VEGA 美国公司的帮助下,这家石灰和石灰石的供应商在 VEGAPULS 69 中找到了他所需的一切性能。
观看视频并了解更多关于 VEGAPULS 69 的独特的聚焦能力:
We need your consent
This content is provided by an external provider. If you activate the content, personal data may be processed and cookies set.
应用
Clinker cooler

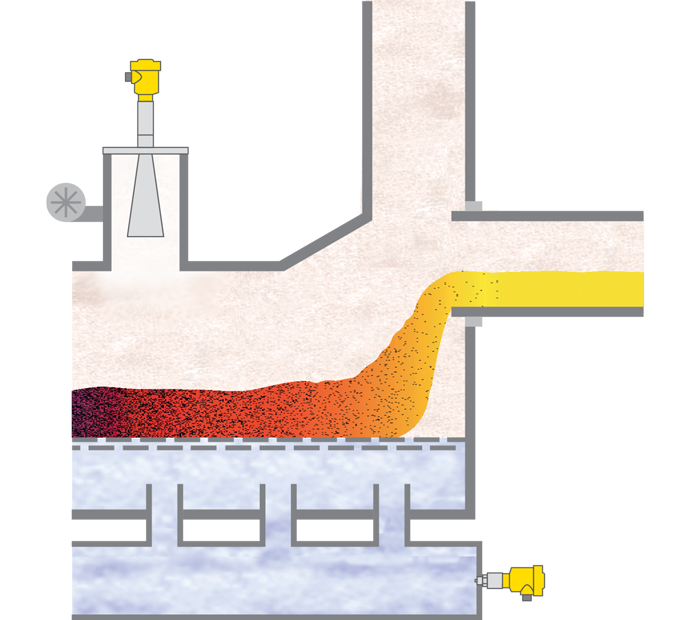

Level and pressure measurement in the clinker cooler
To produce cement, the raw meal is burned to clinker in a long rotary kiln. After leaving the rotary kiln, the clinker has a temperature of up to +1300 °C and must be cooled down to a temperature of about +200 °C for further storage. To achieve this, the clinker bed is cooled with a continuous stream of air. Pressure monitoring is required in the lower part of the clinker cooler to make the cooling as effective as possible. The material height of the hot clinker, at over 1000 °C on the conveyor belt, also has to be reliably measured.
Reliable
Reliable monitoring of cooler process
Cost effective
Optimal cooling with minimum energy expenditure
User friendly
Maintenance-free measurement
