Tank for liquid fuels
Level measurement and point level detection in tanks for liquid fuels
|
雷达, 振动
流体静力学, 振动
|
过程数据
测量任务:
Level measurement and point level detection
测量点:
Tank
测量范围至:
5 m
介质:
Fuel oil, heavy oil
过程温度:
-10 … +80 °C
过程压力:
0 … 0 bar
特殊挑战:
Media with low dielectric constant
应用范围
Large amounts of energy are needed to burn clinker in rotary kilns. Substitute liquid fuels such as spent oils or recovered solvents are often used for this purpose. The fuel storage tanks often contain a mixture of solvents, which can produce fumes and vapours in the air space. Due to the large amount of energy needed in cement production, the fuel inputs represent a significant cost factor, so accurate level measurement is essential.
您的获益
Reliable
Reliable measurement under all operating conditions
Cost effective
Optimal storage
User friendly
Maintenance-free operation
建议的产品

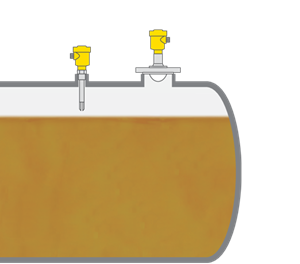

雷达, 振动

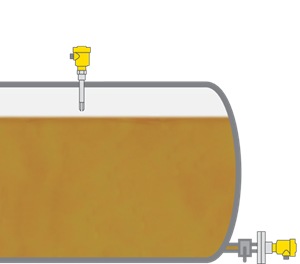

流体静力学, 振动
VEGAPULS 6X
Level measurement with radar in tanks for liquid fuels
- Good focusing means reliable measurement right down to the bottom, thanks to 80 GHz technology
- Reliable measurement, independent of product properties
- Simple installation in small mounting sockets allows universal use
量程 - 距离
120 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar
VEGASWING 63
Vibrating level switch for protection against overfilling in liquid fuel tanks
- Accurate and reliable function through product-independent switching Point
- Reliable point level detection in compliance with SIL2 and WHG
- Adjustment-free setup and maintenance-free operation
过程温度
-50 ... 250 °C
过程压力
-1 ... 64 bar
型式
标准
Hygienic applications
with gas-tight leadthrough
带管延长件
with temperature adapter
VEGABAR 82
Level measurement with pressure transmitter in tanks for liquid fuels
- High plant availability with overload resistant measuring cell
- Maintenance-free, wear-free ceramic measuring cell
- Simple calibration reduces setup costs
量程 - 距离
-
量程-压力
-1 ... 100 bar
过程温度
-40 ... 150 °C
VEGASWING 63
Vibrating level switch for protection against overfilling in liquid fuel tanks
- Accurate and reliable function through product-independent switching Point
- Reliable point level detection in compliance with SIL2 and WHG
- Adjustment-free setup and maintenance-free operation
过程温度
-50 ... 250 °C
过程压力
-1 ... 64 bar
型式
标准
Hygienic applications
with gas-tight leadthrough
带管延长件
with temperature adapter
