Lime silo II

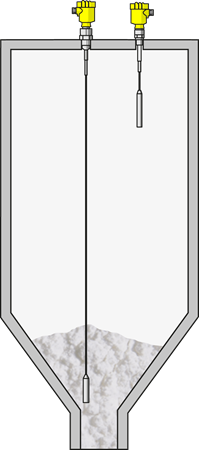

Level measurement in the lime silo
|
|
过程数据
测量任务:
Level measurement and point level detection
测量点:
Silo
测量范围至:
0 … 30 m
介质:
Lime
过程温度:
-40 … +50 °C
过程压力:
0 … 0 bar
特殊挑战:
Strong dust generation and possible condensationv
应用范围
For flue gas desulfurization a continuous production of the lime milk is required, the lime is kept on hand in sufficient quantities in large silos. Lime tends to readily adhere to more or less anything, depending on its type and consistency, interfering with equipment like the operation of instruments. A robust, non-susceptible level measurement is therefore absolutely necessary for reliable lime logistics and stocking. That’s why a non-contact measuring instrument that also works well in the very dusty environment is essential here.
建议的产品
VEGAFLEX 82
The guided radar sensor measures the level in the lime silo
- Unaffected by dust and condensation
- Menu-driven adjustment allows simple, time-saving, confident setup
- Shortenable probes offer basic standardization and maximum flexibility in planning
量程 - 距离
75 m
过程温度
-40 ... 200 °C
过程压力
-1 ... 40 bar
VEGACAP 65
Capacitive cable probe as overfill protection in the lime silo
- Long service life and low maintenance requirements through robust mechanical design
- Shortenable probe allows high flexibility
量程 - 距离
-
过程温度
-50 ... 200 °C
过程压力
-1 ... 64 bar
