VEGAMET 342

Built-in controller and display instrument for level sensors

For two 4 … 20 mA sensors, panel mounting


应用范围

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
The VEGAMET 342 controller feeds the connected 4 ... 20 mA sensors, processes the measured values and displays them. The installation housing is ideal for mounting in the control panel. A large display for data visualisation as well as a turn/push button for easy adjustment on site are integrated. With VEGAMET 342, limit values can be reliably monitored and relays, e.g. for overfill protection according to WHG, can be switched. It enables simple implementation of pump controls, flow measurements on open flumes and weirs, totalizers, differential, sum, average and average value calculations. Due to its versatile and universal possibilities, it is suitable for many industrial sectors as well as plant engineers.

您的获益

  • Complex programming of control tasks is no longer necessary
  • Simple and safe setup and diagnosis of measuring points via smartphone
  • Easy-to-read display from a distance, even in sunlight and darkness

配置产品

配置产品
应用
技术参数
文件
配件
配置产品
技术参数
保护方式
IP20/IP40
输入
2 x 4 … 20 mA sensor input
输出
3 x 继电器输出口
1x failure relay (instead of operating relay)
2x 0/4 ... 20 mA current output
环境温度
-20 ... 60 °C
显示与操作
操作
Smartphone / Tablet / PC via Bluetooth
On-site operation with turn/push button

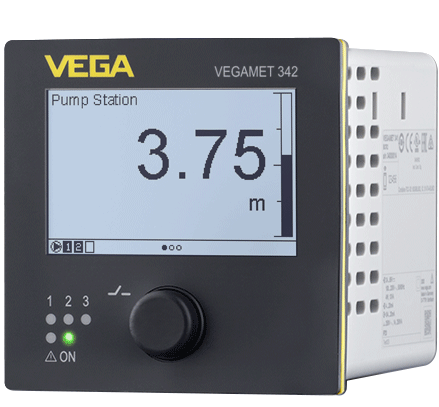

显示
LCD matrix display, black and white

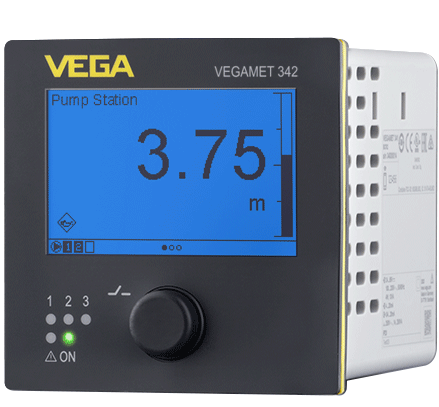

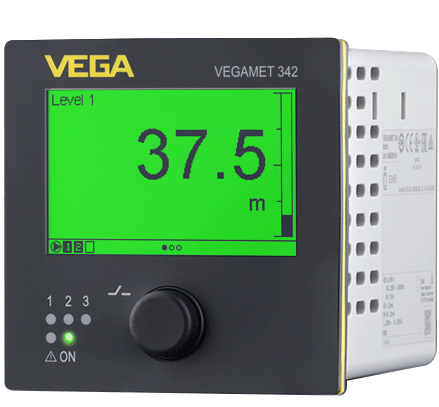

Backlight with colour change acc. to status
