VEGAMET 842
Robust controller and display instrument for level sensors
For two 4 ... 20 mA sensors
应用范围
2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

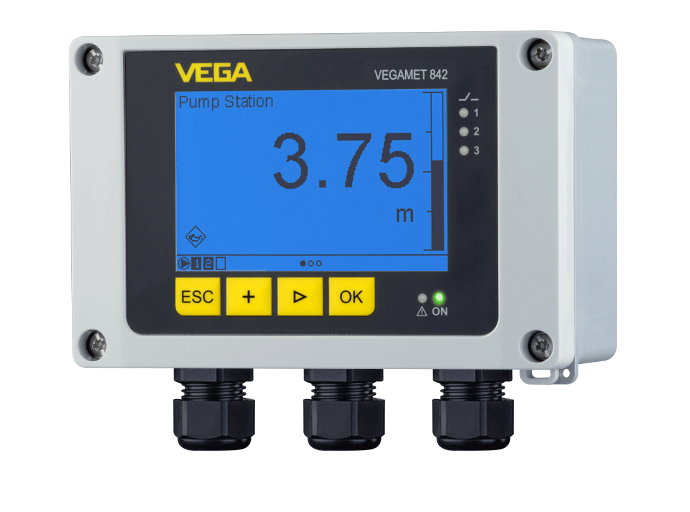

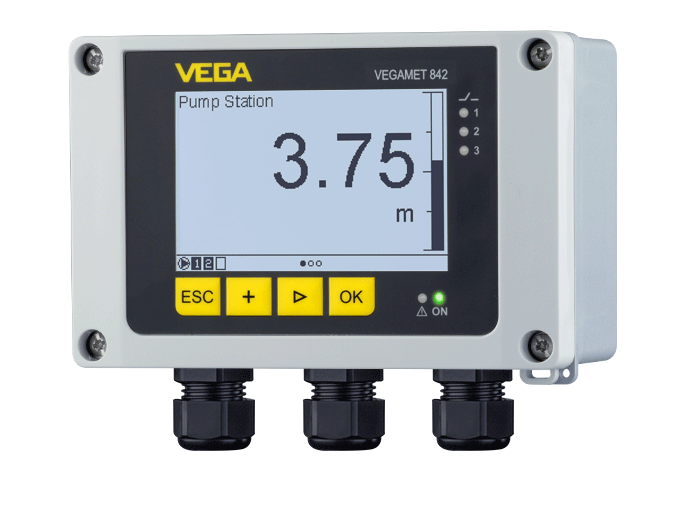

The VEGAMET 842 controller feeds the connected 4 ... 20 mA sensors, processes the measured values and displays them. A large display for data visualisation is integrated in the housing designed for rough field conditions.
It enables a simple conversion of pump controls, flow measurements on open channels and weirs, totalizers, difference, sum and average value calculations. With VEGAMET 842, limit values can be reliably monitored and relays can be switched, e.g. for an overfill protection according to WHG.
您的获益
- Complex programming of control tasks is no longer necessary
- Easy-to-read display from a distance, even in sunlight and darkness
应用
技术参数
文件
配件
配置产品
技术参数
保护方式
IP66/IP67, Type 4X
输入
2 x 4 … 20 mA sensor input
输出
3 x 继电器输出口
1x failure relay (instead of operating relay)
2x 0/4 ... 20 mA current output
环境温度
-40 ... 60 °C
许可证
适用范围
ATEX / 欧洲
c-UL-us
UKEX
防爆
Intrinsic safety "i"
显示与操作
操作
现场调试
Smartphone / Tablet / PC via Bluetooth
显示
LCD matrix display, black and white

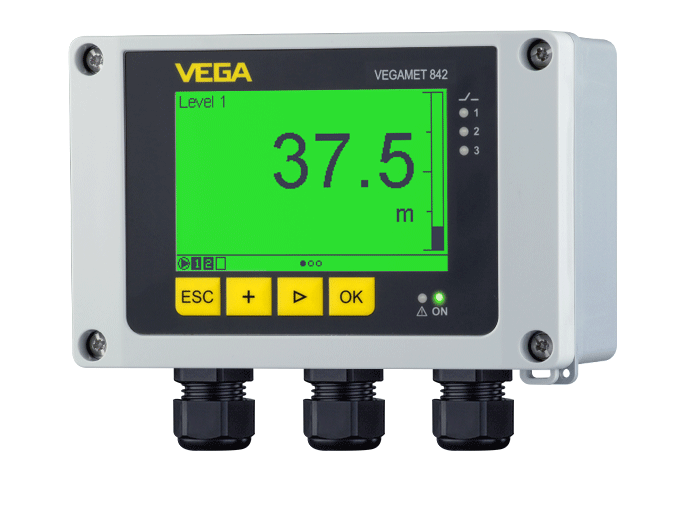

Backlight with colour change acc. to status
图纸发生器
产品目录
Controllers and communication
产品信息
VEGAMET 141, 142, 341, 342, 841, 842, 861, 862
产品数据表
VEGAMET 842
操作说明书
VEGAMET 842
4 … 20 mA
