VEGAMET 861
Robust controller and display instrument for level sensors
For one 4 … 20 mA/HART sensor
应用范围
1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
The VEGAMET 861 controller feeds the connected 4 ... 20 mA or HART sensor, processes the measured values and displays them. A large display for data visualisation is integrated in the housing designed for rough field conditions.
It enables a simple conversion of pump controls, flow measurements on open channels and weirs, totalizers and data loggers. With VEGAMET 861, limit values can be reliably monitored and relays can be switched, e.g. for an overfill protection according to WHG.
您的获益
- Complex programming of control tasks is no longer necessary
- Simple and safe setup and diagnosis of measuring points via smartphone
- Easy-to-read display from a distance, even in sunlight and darkness
应用
技术参数
文件
配件
配置产品
技术参数
保护方式
IP66/IP67, Type 4X
输入
1 x 4 … 20 mA/HART sensor input
2x digital input
输出
1 x 0/4 … 20 mA current output
1x failure relay (instead of operating relay)
4x operating relay
环境温度
-40 ... 60 °C
Measured value memory
Internally
SD card
许可证
适用范围
ATEX / 欧洲
IEC / 全球
UKEX
防爆
Intrinsic safety "i"
显示与操作
操作
现场调试
Smartphone / Tablet / PC via Bluetooth
显示

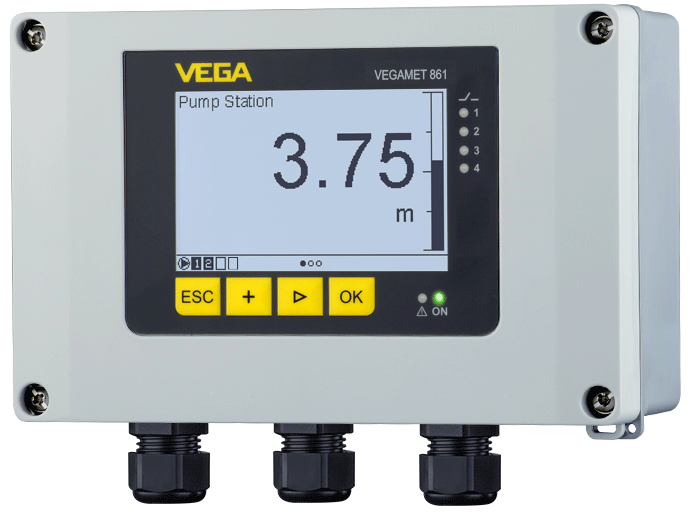

LCD matrix display, black and white

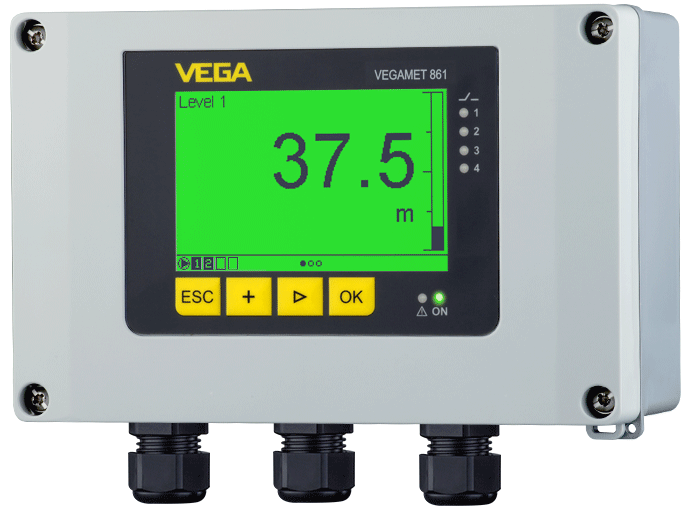

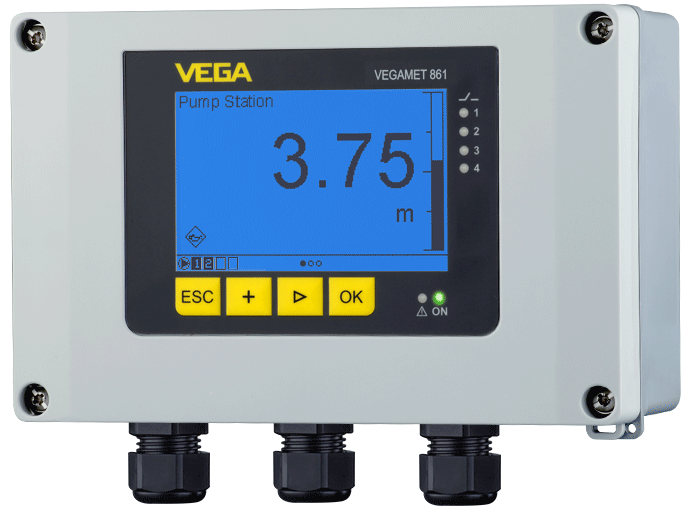

Backlight with colour change acc. to status
图纸发生器
产品目录
Controllers and communication
产品信息
VEGAMET 141, 142, 341, 342, 841, 842, 861, 862
产品数据表
VEGAMET 861
4 … 20 mA/HART - 两线制
操作说明书
VEGAMET 861
4 … 20 mA/HART - 两线制
