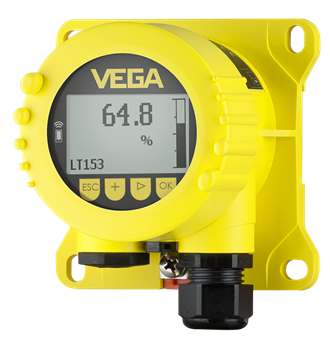

VEGADIS 81

External display and adjustment unit for plics® sensors

External display and adjustment unit for VEGA sensors, optionally with Bluetooth


VEGADIS 81

应用范围

The VEGADIS 81 is an external, digital display and adjustment unit for all plics® sensors. The instrument is mounted in a distance of up to 50 m away from the sensor where it is easily accessible. It is directly connected to the electronics of the sensor from which it is also powered.

您的获益

  • Reading and adjustment comfort through installation in 90° steps
  • Simple adjustment via 4 keys and clearly structured program guidance
  • Good readability of the display through clear text indication with graphic support (PLICSCOM)
  • Measured value indication and sensor adjustment in an easily accessible position
  • Optional possibility of wireless operation via Bluetooth with smartphone/tablet/PC as well as magnetic pen operation in case of housing lid with inspection window

配置产品

配置产品

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
应用
技术参数
文件
配件
配置产品

若一个测量点位于一个难于企及之处,可以将过程显示器与 VEGA 传感器的电子部件相连,并将之安装在一个易于触及之处。 显示器 VEGADIS 81 和传感器之间的距离会长达 50 m。
通过与电子部件直接连接得以保持测量线路不中断。
过程显示器的典型应用领域是:

  • 对物位和压力测量值进行目检
  • 诊断信息和传感器参数的显示器
  • 相连的 VEGA 传感器的调整单元

其他应用

反渗透净水设备

反渗透净水设备差压测量

反渗透净水设备差压测量

参考应用

水塔

水塔

水塔压力测量

参考应用

Wood chip silo

Wood chip silo

Wood chip silo level measurement

参考应用

一次性储液袋

一次性储液袋

测量一次性储液袋液位

参考应用
技术参数
外壳材料
塑料
铝Aluminium
不锈钢,精密铸件
保护方式
IP66/IP67
环境温度
-20 ... 70 °C
输入
plics sensor (serial)
输出
Display
许可证
适用范围
ATEX / 欧洲
CSA / 加拿大
FM/美国
EAC (GOST) / 白俄罗斯
EAC (GOST) / 俄罗斯
IEC / 全球
NEPSI / 中国
UKR Sepro / 乌克兰
INMETRO / 巴西
CCOE / 印度
KTL Korea
CCC
UKEX
防爆
Intrinsic safety "i"
Flameproof enclosure "d"
Dust explosion protection through housing "t"
船用许可证
BV
DNV
RMROS
显示与操作
操作
Plicscom
现场调试
显示
显示/操作模块 PLICSCOM
Graphic-capable LC display

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。

现在配置

产品目录

Display instruments and adjustment

    • ZH
    • EN
    • DE
    • CS
    • ES
    • FR
    • IT
    • NL
    • PL
    • PT
    • TR
下载

产品数据表

VEGADIS 81

    • ZH
    • EN
    • US
    • DE
    • ES
    • FR
    • IT
    • NL
    • PT
    • TR
下载

操作说明书

VEGADIS 81

    • ZH
    • EN
    • DE
    • ES
    • FR
    • IT
    • KK
    • NL
    • PT
    • TR
    • UK
下载

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。

现在配置

该产品的更多下载

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
配件

VEGADIS adapter

102410-Adapter-VEGADIS81-or-BAR-Slave

For connection of an external display and adjustment unit or a Secondary sensor.
