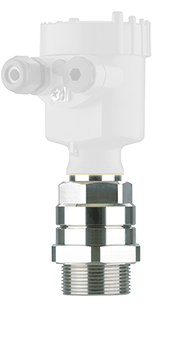

VEGAMIP T61

Microwave emitter for level detection of bulk solids and liquids

微波发射器


VEGAMIP T61

应用范围

微波栅的发射单元用于与一个 VEGAMIP R61 或 62 型接收单元一起使用
VEGAMIP T61 是微波栅栏的发送单元, 用于粒料和液体的物位极限测量。 典型应用包括料罐,贮仓和碎石机的粒料极限测量,以及容器和管道内液体测量。 无接触测量与填料不接触,因而能持续无损耗免维护工作。

您的获益

  • Separate instrument version enables mounting in installation positions difficult to access
  • Reliable measurement even with very abrasive products
  • Reliable measurement even with changing product features

配置产品

配置产品

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
应用
技术参数
文件
配件
配置产品

其他应用

Conveyor belt transfer station

Conveyor belt transfer station

Level measurement and point level detection at the belt transfer point

参考应用

Incinerator feed chute

Incinerator feed chute

Detection of the level in the feed chute

参考应用

Truck loading

Truck loading

Point level detection during the loading of trucks

参考应用

焦炭筒仓

焦炭筒仓料位及限位测量

焦炭筒仓料位及限位测量

参考应用
技术参数
Measuring range - Distance
100 m [Meter - Foot]
Process temperature
-40 ... 80 °C [°C - °F]
Process pressure
-1 ... 4 bar [Bar - kPa - psi]
Version
hygienically encapsulated horn antenna
for separate horn antenna
with horn antenna ø 40 mm
with horn antenna ø 48 mm
with horn antenna ø 75 mm
with horn antenna ø 95 mm
with plastic horn antenna ø 80 mm
Horn antenna ø 1½"
with encapsulated horn antenna
Materials, wetted parts
PTFE
316L
1.4848
PP
Threaded connection
G1½, 1½ NPT
Flange connection
≥ DN50, ≥ 2"
Hygenic fittings
Slotted nut ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
DRD connection ø 65 mm
for NEUMO BioControl D50 PN16 / 316L
Seal material
FKM
FFKM
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
Ambient temperature
-40 ... 80 °C
许可证
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
Explosion protection
Flameproof enclosure "d"
Dust explosion protection through housing "t"

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。

现在配置

操作说明书

VEGAMIP T61 - emitting unit

    • ZH
    • EN
    • DE
    • CS
    • DA
    • ES
    • FI
    • FR
    • HU
    • IT
    • KK
    • KO
    • NL
    • NO
    • PL
    • PT
    • SV
    • TR
    • UK
下载

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。

现在配置

该产品的更多下载

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
显示仪表
备件

PLICSLED

PLICSLED-off

Universal display module suitable for all sensors of the VEGA plics® family with relay output

产品细节

锁紧螺母

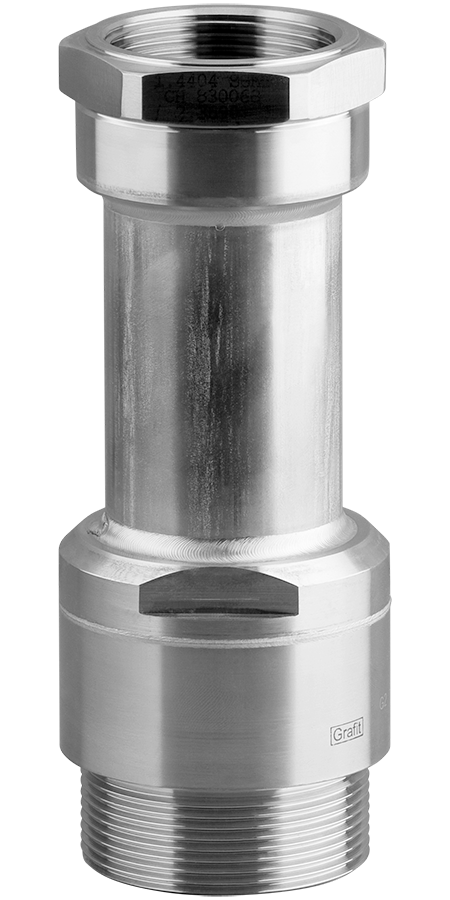

安装接口 VEGAMIP

Montageadapter-VEGAMIP

Adapter for mounting of a VEGAMIP T61/R61/R62 at high temperatures and/or abrasive products.

产品细节

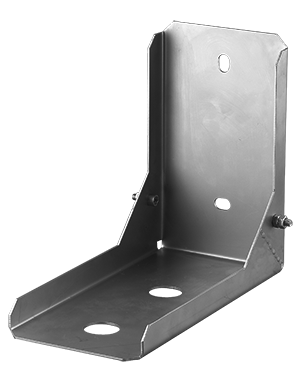

填球角

For wall mounting of VEGA instruments.

产品细节

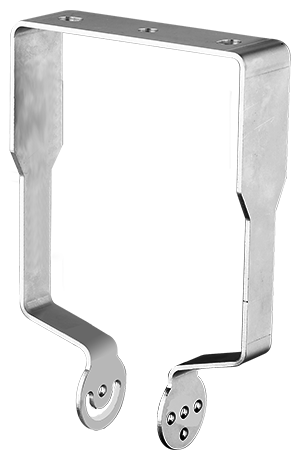

安装钩

For mounting of VEGA instruments.

产品细节

防护罩

The protective cover is an accessory or retrofit part for sensors from the VEGA plics® line of products.

产品细节

电子 VEGAMIP R61/T61

过程组件 VEGAMIP R61/T61
