Bottle cleaning

Pressure and limit level measurement in the bottle cleaning process

Process data

Measuring task:
Pressure and point level measurement
Measuring point:
Basin, pipeline
Measuring range up to:
+2 bar
Water, caustic solution
Process temperature:
+40 … +80 °C
Process pressure:
0 … +2 bar
Special challenges:
Limited space, temperature/lye resistance


Before they are filled with beer, the bottles are thoroughly cleaned. The bottles are fed into the system and filled with caustic water in the basin of the washing facility, which removes all coarse dirt and contamination. Water at different temperatures is then sprayed into the bottles via high-pressure nozzles in order to remove any remaining dirt and the caustic solution. To ensure optimal system operation, the level in the basin is hydrostatically monitored. In addition, the pressure in the supply line to the basin and in the water pipeline to the rinsing nozzles is measured.

Your benefit

Approved materials in compliance with FDA and EC 1935/2004
Cost effective
Continuous monitoring ensures optimal system operation
User friendly
Compact design

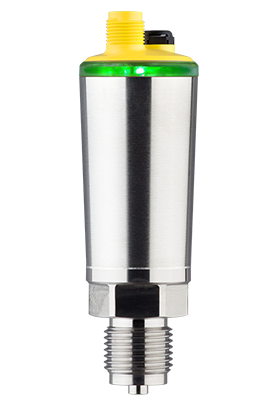

Recommended products
