Separation tank

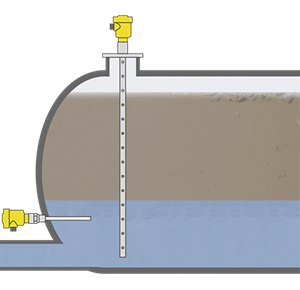

Level measurement and interface detection in the separation tank
|
|
Process data
Measuring task:
Level and interface measurement, limit level detection
Measuring point:
Tank
Measuring range up to:
15 m
Medium:
Water-based media and hydrocarbons
Process temperature:
+20 … +80 °C
Process pressure:
0 … +16 bar
Special challenges:
Varying media properties, emulsions
Application
Separation processes often involve the separation of water-based media and hydrocarbons. Level measurement with guided radar utilises the effect that non-conductive media allow some of the radar energy to pass through, thereby enabling measurement of the interface between the water-based medium and the hydrocarbons. In interface detection with a vibrating level switch, the different densities of the media cause the tuning fork to vibrate at different frequencies. These frequencies can be converted into a switching command in the downstream controller to reliably differentiate between the two media.
Your benefit
Reliable
Reliable measurement of the interface
Cost effective
Maintenance-free operation
User friendly
Simple setup and commissioning
Recommended products
VEGAFLEX 81
Level and interface measurement with guided radar in separation tanks
- The rod or coaxial sensor reliably detects the total level and the position of the interface
- Interface thickness measurement is possible from 50 mm.
- VEGAFLEX 81 reliably performs the measuring task even in emulsion phases.
- Maintenance-free operation and simple setup & commissioning
Measuring range - Distance
75 m
Process temperature
-60 ... 200 °C
Process pressure
-1 ... 40 bar
VEGASWING X
Vibrating level switch for interface detection and limit level measurement in separation tanks
- Reliable interface detection in liquid media
- Precise and reliable function thanks to product-independent switching point
- Reduced maintenance needs, as there are no moving parts
- Simple setup without adjustment
Measuring range - Distance
-
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
