Cargo tanks on LNG carriers
Pressure, level and point level detection in Liquefied Natural Gas (LNG) applications
Pressure, level and point level detection in Liquid Natural Gas (LNG) applications
Process data
Measuring task:
Level and pressure measurement, point level detection
Measuring point:
Tank
Measuring range up to:
40 m
Medium:
Liquefied gas
Process temperature:
-20 … -162 °C
Process pressure:
0 … +5 bar
Special challenges:
Extremely low temperatures, low dielectric constants, low density, different products, ship approvals, Ex zone
Application
Liquefied gas is transported in insulated cargo tanks on LNG carriers at temperatures of -162 °C. The instrumentation used must be specially designed for these extreme temperatures. Pressure, level and point level of LNG in the cargo tanks must be reliably measured for the transport.
Your benefit
Reliable
Reliable and safe measurement in all media
Cost effective
Full utilization of the tank volume
User friendly
Simple planning and commissioning
Recommended products
VEGAPULS 6X
Radar sensor for non-contact level measurement in LNG tanks
- Front-flush PTFE antenna means no additional sealing material is required
- Reliable measurement even at very low temperatures down to -200 °C
- Exact measurement data despite low relative permittivity of the liquefied gas
Measuring range - Distance
120 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
VEGABAR 82
Pressure transmitter for monitoring the pressure in the liquid gas tank
- High plant availability through maximum overload resistance of the ceramic measuring cell
- A special seal material and the dry measuring cell enable measurement at temperatures down to -50 °C
Measuring range - Distance
-
Measuring range - Pressure
-1 ... 100 bar
Process temperature
-40 ... 150 °C

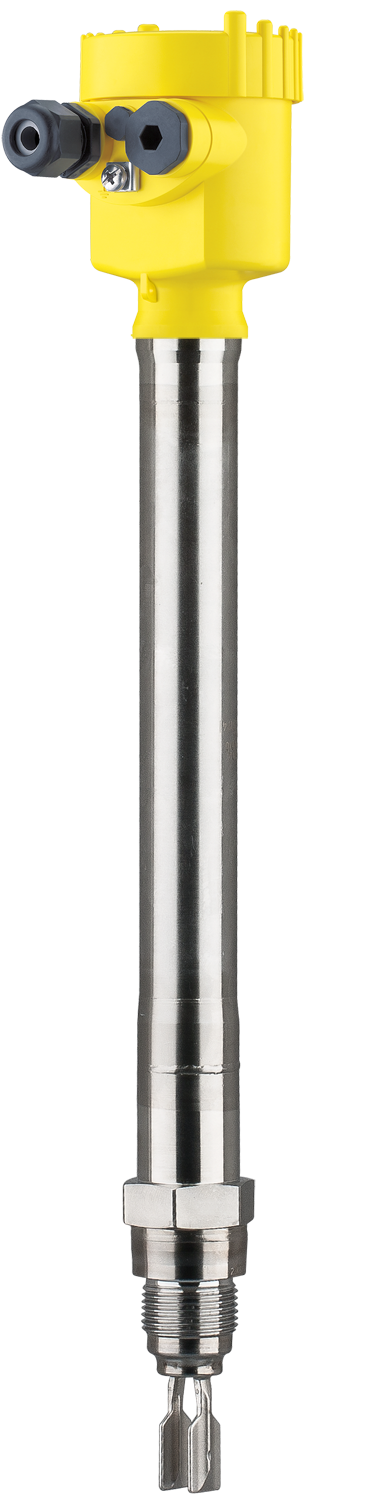

VEGASWING 66
Vibrating level switch for point level detection in liquid gas tank
- Sensor for applications down to a temperature of -196 °C
- Switching point independent of changing media
- Reliable even with adhesive buildup
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
Version
Compact version
with gas-tight leadthrough
with tube extension
