VEGAPULS SR 68

Radar sensor for continuous level measurement of bulk solids

VEGAPULS SR 68
VEGAPULS SR 68

Application area

Level measurement for bulk solids silos up to 30 m high

The VEGAPULS SR 68 is a radar sensor for continuous measurement of bulk solids even under difficult process conditions. It is particularly suitable for level measurement in high silos and large bunkers. The VEGAPULS SR 68 is an economical solution thanks to the simple setup and the reliable, maintenance-free operation.

Your benefit

  • High plant availability, because wear and maintenance-free
  • Maintenance-free operation through non-contact measuring principle
  • Reliable measurement independent of vapour, dust and noise

Technical data

Measuring-range---Distance
30 m
Process-temperature
-40 ... 250 °C
Process-pressure
-1 ... 100 bar
Accuracy
± 2 mm
Version
  • for separate horn antenna
  • with horn antenna ø 40 mm
  • with horn antenna ø 48 mm
  • with horn antenna ø 75 mm
  • with horn antenna ø 95 mm
  • with parabolic antenna ø 245 mm
Materials,-wetted-parts
  • 316L
  • Alloy C22 (2.4602)
  • 1.4848
Threaded-connection
≥ G1½, ≥ 1½ NPT
Flange-connection
≥ DN50, ≥ 2"
Seal-material
  • FKM
  • FFKM
Housing-material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection-rating
  • IP 66/IP 68 (0.2 bar)
  • IP 66/IP 67
  • IP 66/IP 68 (1 bar)
Output
  • Profibus PA
  • Foundation Fieldbus
  • 4 … 20 mA/HART - two-wire
  • Modbus
  • 4 … 20 mA/HART - four-wire
Ambient-temperature
-40 ... 80 °C

Configurator

Configure product

VEGA Recommends

PLICSCOM with Bluetooth

Provides access to configure the sensor, and visualize the measured value right at the sensor housing. This can be ordered as part of the model code of the sensor or as a separate item.

PLICSCOM
PLICSCOM now with Bluetooth!

Level measurement for bulk solids silos up to 30 m high

The level instrument VEGAPULS SR 68 is the trustworthy solution for level measurement in bulk solids silos up to 30 m high or in bunkers. Since even the smallest radar reflections from bulk solid surfaces are detected, the sensor is used in a wide range of applications. Reliable level measurement of any kind of bulk solid material is ensured with the level instrument VEGAPULS SR 68. Quick product changes can be carried out easily without recalibration.

Other applications

Product configuration

Configure product

Documentation & Software

appropriate to VEGAPULS SR 68

Accessories

appropriate to VEGAPULS SR 68

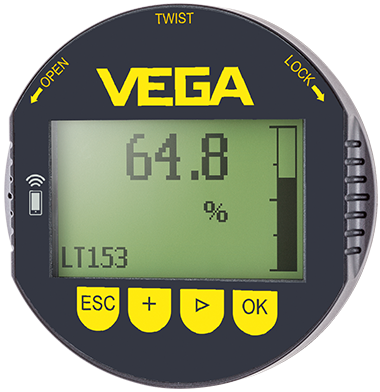

PLICSCOM

Measured value indication and adjustment of plics® sensors

Protection-rating
IP 20/IP 40
Ambient-temperature
-15 ... 70 °C

Bluetooth USB adapter

Wireless adjustment of sensors and instruments via Bluetooth

Version
Bluetooth Smart
Ambient-temperature
-40 ... 85 °C
Forecast
Forecast

VEGADIS 81

Remote measurement value indication and adjustment of plics® sensors

Housing-material
Plastic
+2 other
Protection-rating
IP 66/IP 68 (0.2 bar)
+1 other
Ambient-temperature
-15 ... 70 °C

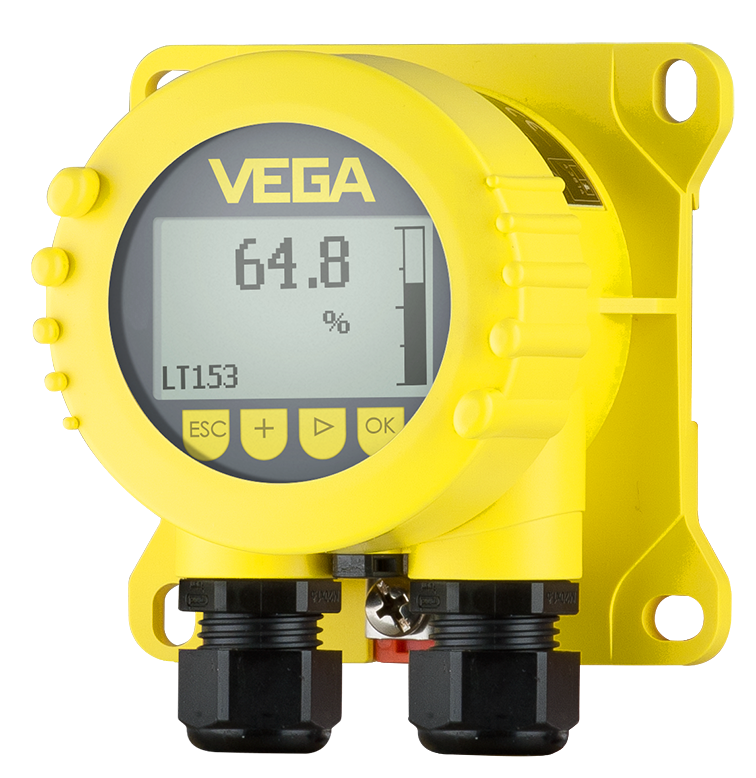

VEGADIS 82

External measured value display and adjustment for 4 ... 20 mA/HART sensors

Housing-material
Plastic
+2 other
Protection-rating
IP 66/IP 68 (0.2 bar)
+1 other
Ambient-temperature
-15 ... 70 °C

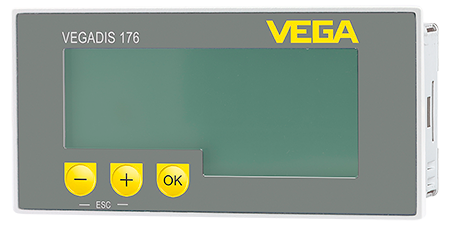

VEGADIS 176

Remote display for use in 4 ... 20 mA current loop

Protection-rating
IP 20/IP 65
Ambient-temperature
-10 ... 60 °C

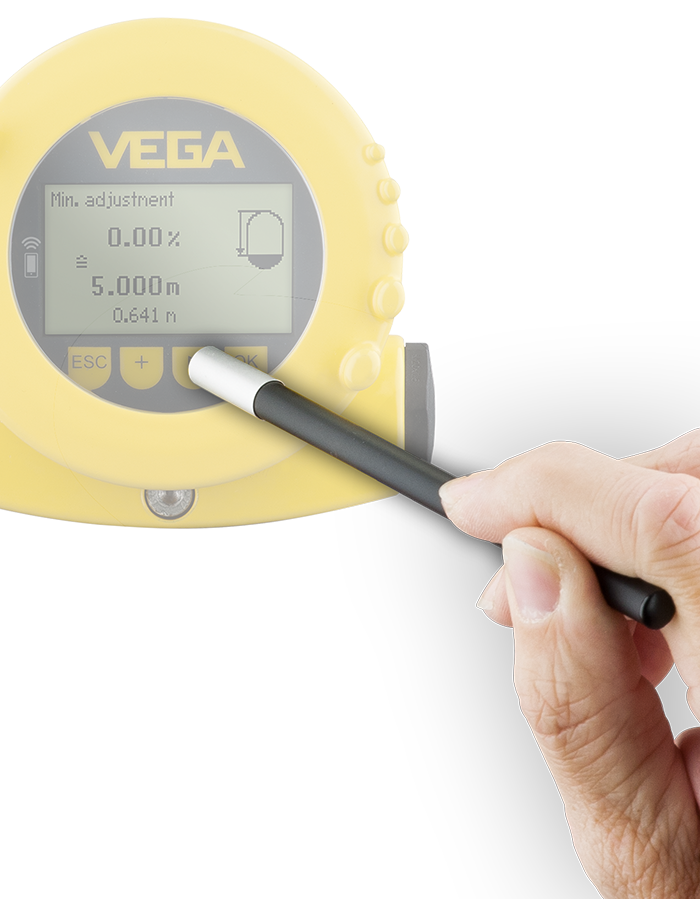

Magnetic pen for display/adjustment module PLICSCOM

Magnetic pen for on-site adjustment

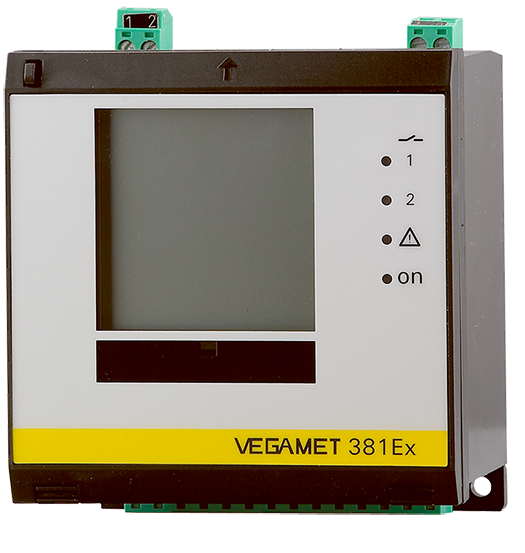

VEGAMET 381

Measured value display and simple control functions

Protection-rating
IP 20/IP 40
Input
1 x 4 … 20 mA sensor input
Output
1 x 0/4 … 20 mA current output
+2 other

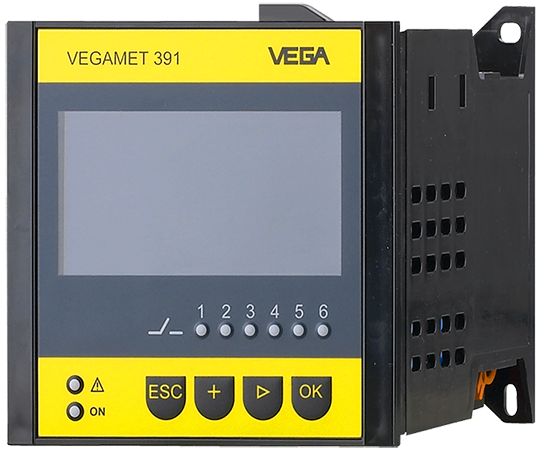

VEGAMET 391

Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry

Protection-rating
IP 20/IP 65
Input
1 x 4 … 20 mA/HART sensor input
+1 other
Output
1 x 0/4 … 20 mA current output
+3 other

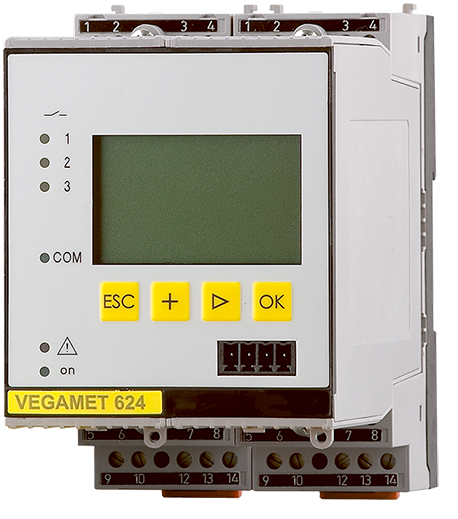

VEGAMET 624

Measured value indication, simple control functions such as remote enquiry of measured values for a 4 ... 20 mA/HART sensor

Protection-rating
IP 20/IP 30
Input
with transmitter power supply
+1 other
Output
1 x fail safe relay
+4 other

VEGAMET 625

Measured value indication, simple control functions such as remote enquiry of measured values for two HART sensors

Protection-rating
IP 20/IP 30
Input
2 x 4 … 20 mA/HART sensor input with transmitter power supply (only HART capable sensors)
Output
1 x fail safe relay
+4 other

VEGASCAN 693

Measured value indication and remote enquiry of measured data for up to 15 HART sensors

Protection-rating
IP 20/IP 30
Input
up to 15 HART-capable sensors
+1 other
Output
1 x fail safe relay
+2 other

VEGATOR 141

Transmission of 4 ... 20 mA signals for level signalling

Protection-rating
IP 20
Input
1 x 4 … 20 mA sensor input
Output
1 x operating relay (SPDT)
+1 other

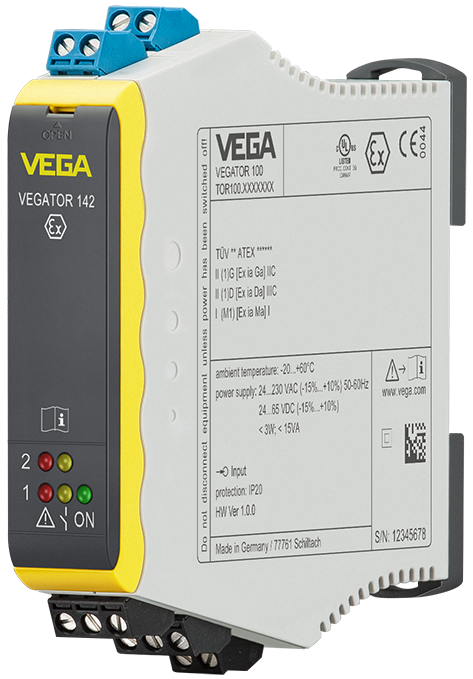

VEGATOR 142

Transmission of 4 ... 20 mA signals for level signalling

Protection-rating
IP 20
Input
2 x 4 … 20 mA sensor input
Output
2 x operating relay (SPDT)

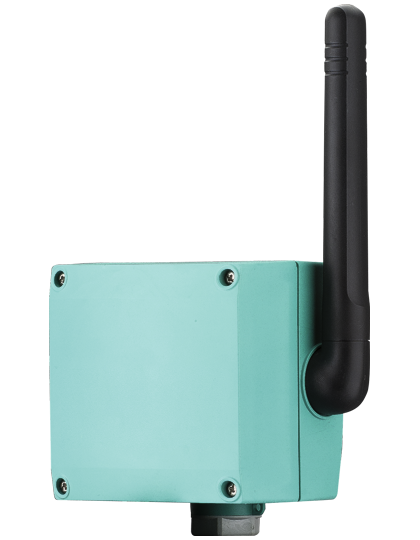

WirelessHART-Adapter

Emitting unit for wireless transmission of measured values ​​and remote parameter adjustment/diagnosis (single channel)

Housing-material
Plastic
+1 other
Protection-rating
IP 66
Ambient-temperature
-40 ... 80 °C

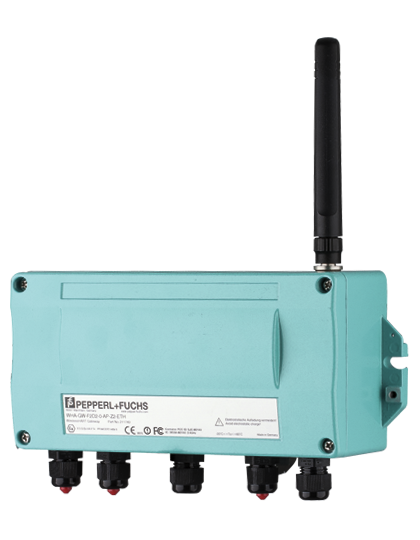

WirelessHART-Gateway

Receiving unit for wireless transmission of measured values ​​and remote parameter adjustment/diagnosis (multichannel)

Protection-rating
IP 65
Ambient-temperature
-20 ... 60 °C

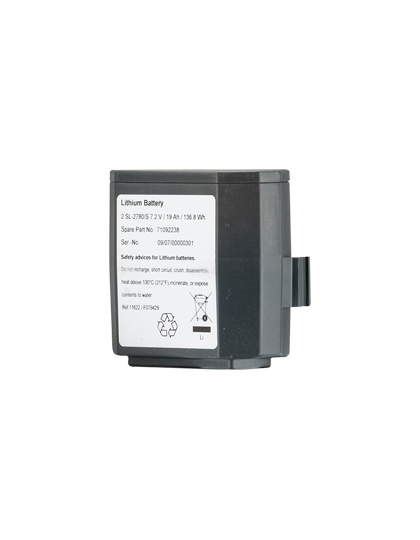

WirelessHART accessory

Mounting kit and extra battery

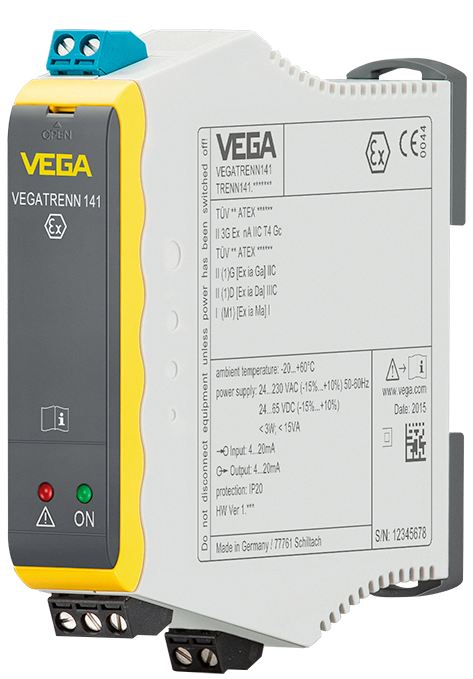

VEGATRENN 141

Single channel separator for 4 … 20 m/HART sensors

Protection-rating
IP 20
Input
1 x 4 … 20 mA/HART sensor input
Output
1 x 4 … 20 mA

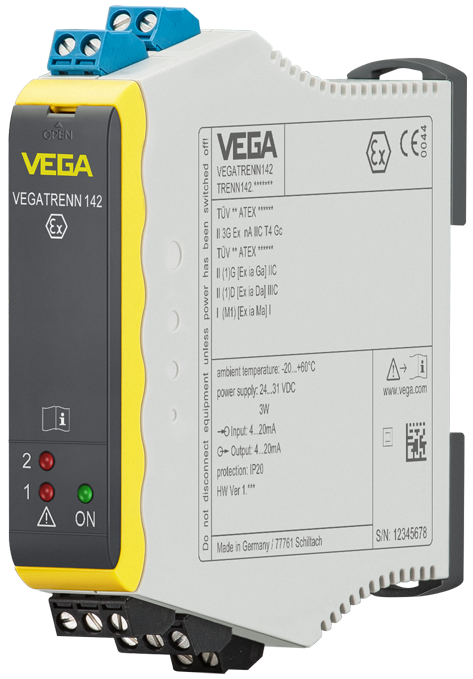

VEGATRENN 142

Double channel separator for 4 … 20 m/HART sensors

Protection-rating
IP 20
Input
2 x 4 … 20 mA sensor input
Output
2 x 4 ... 20 mA

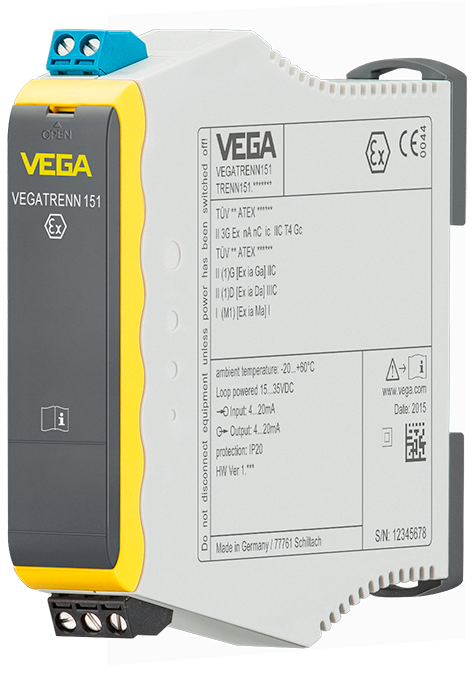

VEGATRENN 151

Single channel separator in two-wire technology for 4 … 20 mA sensors

Protection-rating
IP 20
Input
1 x 4 … 20 mA/HART sensor input
Output
1 x 4 … 20 mA

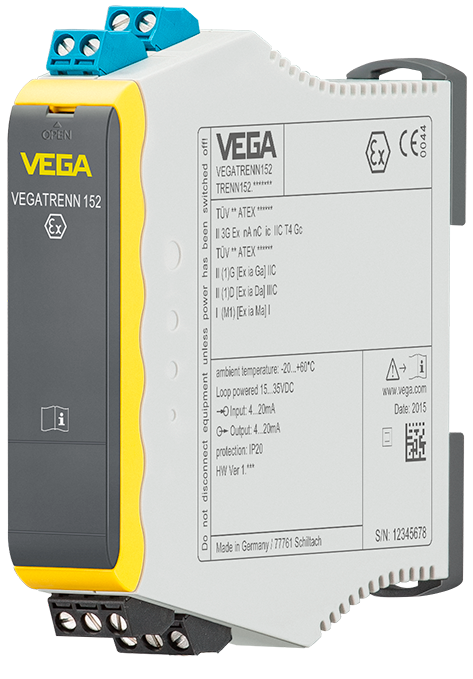

VEGATRENN 152

Double channel separator in two-wire technology for 4 … 20 mA sensors

Protection-rating
IP 20
Input
2 x 4 … 20 mA sensor input
Output
2 x 4 ... 20 mA

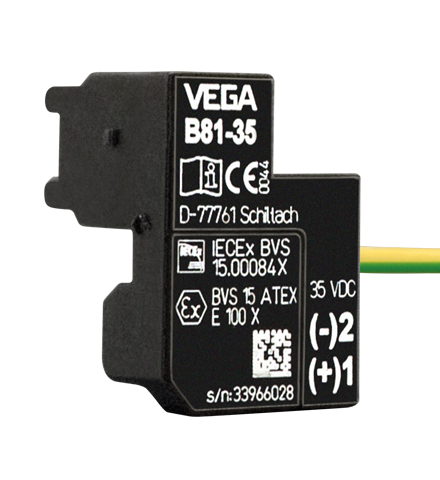

Overvoltage protection B 81-35

Pluggable overvoltage protection for supply and signal cables

Process-temperature
-40 ... 85 °C
Output
4 … 20 mA/HART
+4 other

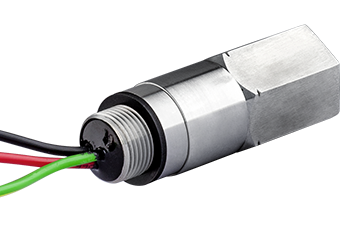

Overvoltage protection B 63-32

Overvoltage protection for Profibus PA and Foundation Fieldbus circuits

Protection-rating
IP 66
Ambient-temperature
-40 ... 85 °C

Overvoltage protection B 63-48

Overvoltage protection for two-wire circuits

Protection-rating
IP 66
Ambient-temperature
-40 ... 85 °C

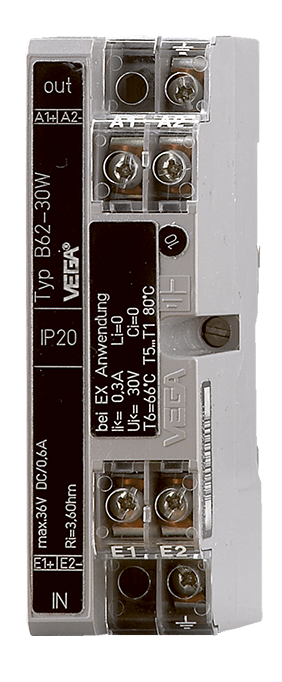

Overvoltage protection B 62-30 W

Overvoltage protection for Profibus PA and Foundation Fieldbus circuits

Housing-material
Plastic
+1 other
Protection-rating
IP 20/IP 65
Ambient-temperature
-40 ... 60 °C

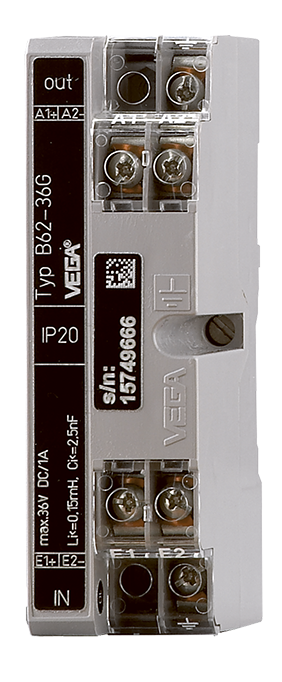

Overvoltage protection B 62-36 G

Overvoltage protection for two-wire circuits

Housing-material
Plastic
+1 other
Protection-rating
IP 20/IP 65
Ambient-temperature
-40 ... 60 °C

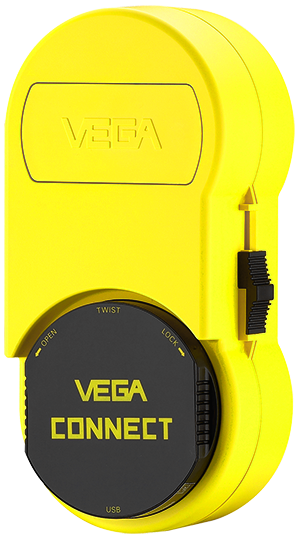

VEGACONNECT

Interface adapter between PC and VEGA instruments

Housing-material
Plastic
Protection-rating
IP 40
Ambient-temperature
-20 ... 60 °C

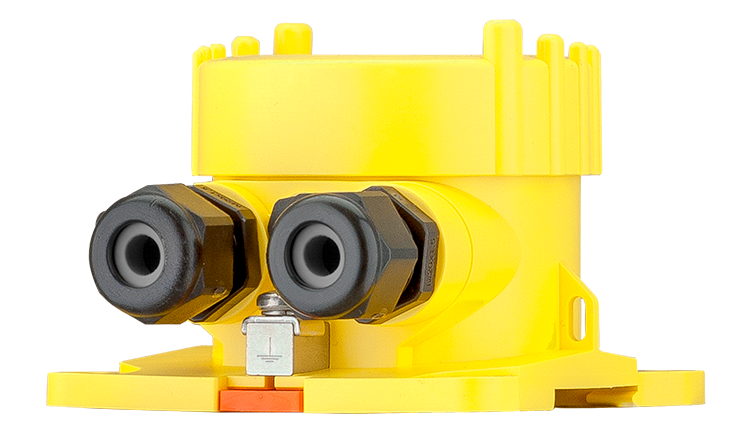

VEGABOX 03

Protection-rating
IP 66/IP 68 (0.2 bar)
Ambient-temperature
-20 ... 70 °C

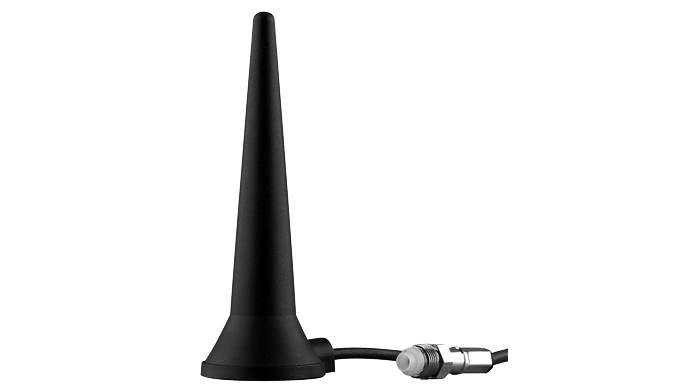

Modem antenna

Ethernet switch

up to 8 RS45 pluggable

Protection-rating
IP 20

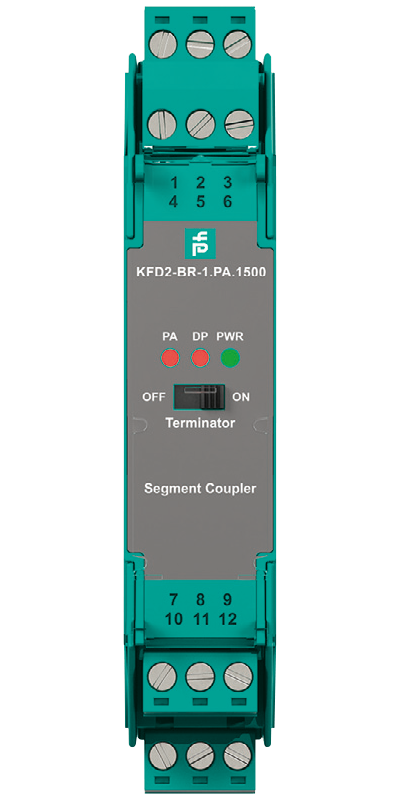

Profibus PA/DP segment coupler

Simple segment coupler for up to 93.75 kbit/s DP-side

Protection-rating
IP 20
Ambient-temperature
-20 ... 60 °C

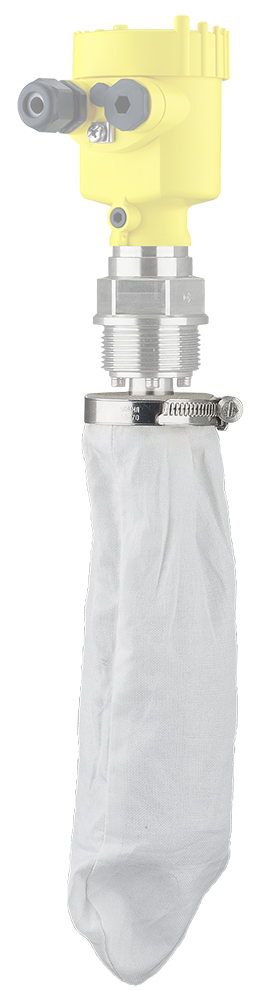

Antenna cover for VEGAPULS SR68/68

Antenna cover of plastic or flexible Gore® diaphragm.

Adjusting aid for swivelling holder VEGAPULS 68

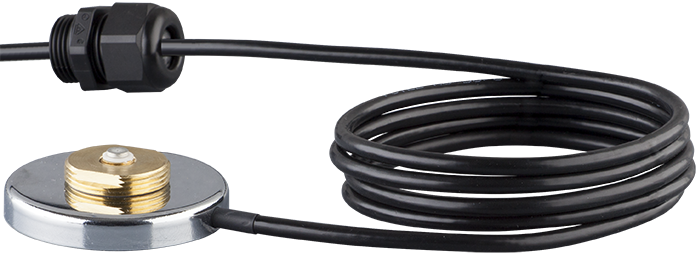

Antenna extension PLICSMOBILE

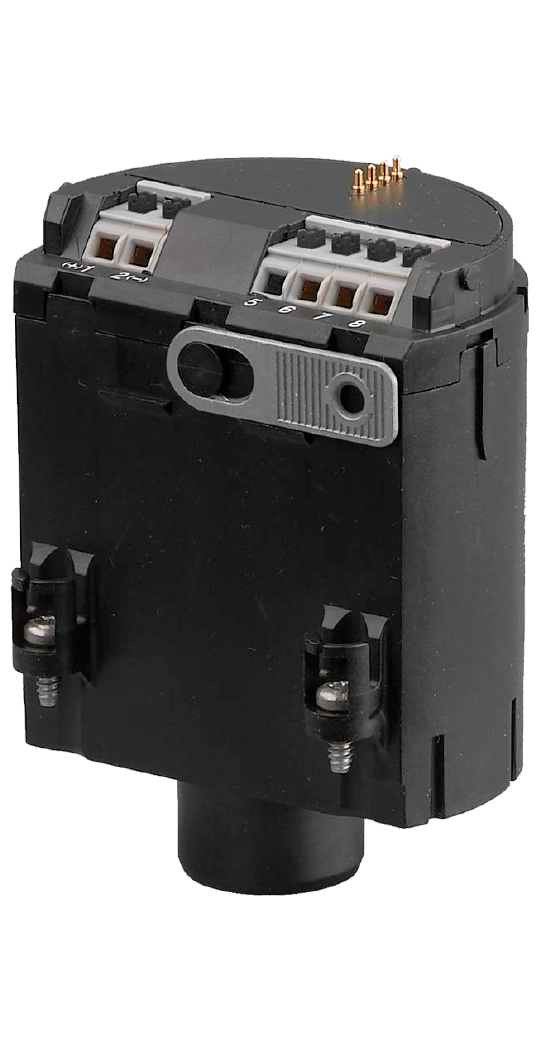

Electronics VEGAPULS series 60 plics®plus

Process component VEGAPULS 68

PLICSMOBILE plug connector with SMA connection

Electronics PLICSMOBILE series 80
