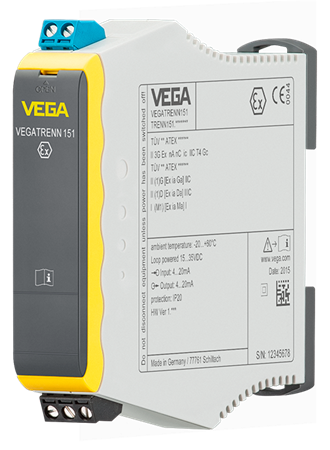

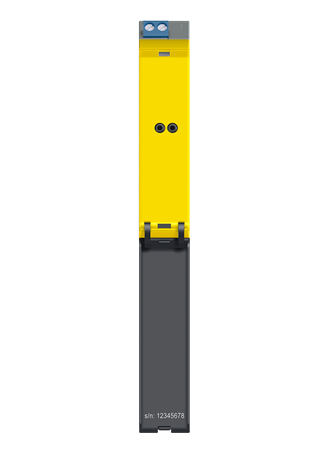

VEGATRENN 151

Separator for 4 … 20 mA sensors

Single channel , passive


VEGATRENN 151
VEGATRENN 151

Uygulama sahasi

The single channel VEGATRENN 151 is used for galvanic separation of intrinsically safe applications as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separator is ideal in conjunction with controllers without own Ex approval. The VEGATRENN 151 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Yararlari

  • İlave bir voltaj beslemesine ihtiyaç olmadığından kolay kurulum
  • Taşıma rayı montajı sayesinde kolay montaj
  • Reliable separation of intrinsically safe and non-intrinsically safe measuring circuits (use in hazardous areas is optional)

Ürünü konfigüre et

Ürünü konfigüre et
Teknik veriler
Dökümanlar
Ürünü konfigüre et
Teknik veriler
Koruma sınıfı
  • IP20
Giriş
  • 1 x 4 … 20 mA/HART sensor input
Çıkış
  • 1 x 4 … 20 mA
Ortam sıcaklığı
  • -20 ... 60 °C
Onaylar
Kapsam
  • ATEX / Avrupa
  • CSA / Kanada
  • EAC (GOST) / Beyaz Rusya
  • EAC (GOST) / Kazakistan
  • EAC (GOST) / Rusya
  • NEPSI / Çin
  • UKR Sepro / Ukrayna
SIL Kalifikasyonu
  • SIL2

Çizim jeneratörü

Bireysel konfigürasyonunuz için 2B ve 3B çizimleri oluşturun.
