Reversing conveyor
Level measurement in the discharge area of the gypsum conveyor
|
|
过程数据
测量任务:
Level measurement
测量点:
Wet gypsum storage hall
测量范围至:
10 … 15 m
介质:
Gypsum
过程温度:
-40 … +50 °C
过程压力:
0 … 0 bar
特殊挑战:
Dust generation
应用范围

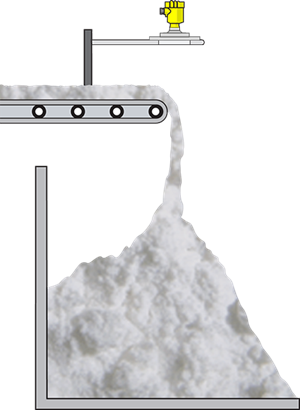

The gypsum extracted from the exhaust gases in the flue gas desulphurisation unit is transported by conveyor belts to the wet gypsum storage hall. The stockpile loading is carried out by a reversing conveyor, which is able to, when a desired filling height is reached, traverse forward or back to another discharge position. For safety reasons, there are two redundant radar sensors at the end of the reverse conveyor belt to monitor the stockpile filling height during discharge.
建议的产品
VEGAPULS 6X
The radar sensors monitor the filling height of the stockpile and control the movement and position of the reversing conveyor
- High plant availability with wear and maintenance-free measuring instrument
- Unaffected by condensation, dust and noise
- Approvals according to dust-Ex and SIL2
量程 - 距离
120 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar
