Storage tanks for acids

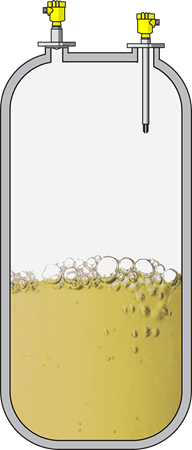

Level measurement in storage tanks for acids
|
|
过程数据
测量任务:
Level measurement and point level detection
测量点:
Tank
测量范围至:
0 … 4 m
介质:
Sulphuric or hydrochloric acid
过程温度:
-40 … +50 °C
过程压力:
0 … 0 bar
特殊挑战:
Aggressive media
应用范围
The raw water, which is usually extracted from a river, cannot be fed untreated directly into the turbine circuit of the plant. It has to be treated first. To neutralize the water, either sodium hydroxide (NaOH) or hydrochloric acid (HCL) is added. Level sensors supply the measurement data required to ensure a high availability of these chemicals and others used to treat the feed water.
建议的产品
VEGAPULS 6X
The non-contact radar sensors are optimized for reliable measurement of aggressive media
- High acid resistance through optimized antenna design
- Reliable technology ensures high measurement certainty
- Very high operational reliability and long service life thanks to non-contact measuring method
量程 - 距离
120 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar
VEGASWING 63
The universally applicable vibrating level switch reliably prevents an overfilling of the container
- Product-independent switching point ensures millimetre-exact detection of the limit level
- Minimal costs for maintenance and servicing
- Available in different materials, includes Ex, WHG and SIL2 approvals
过程温度
-50 ... 250 °C
过程压力
-1 ... 64 bar
型式
标准
Hygienic applications
with gas-tight leadthrough
带管延长件
with temperature adapter
