Molten salt storage in a thermal solar plant

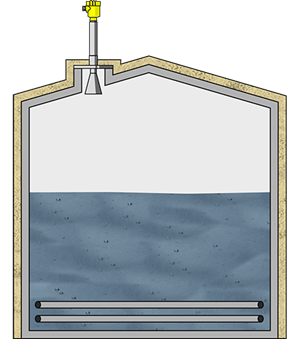

Level measurement in the molten salt storage tank
过程数据
测量任务:
Level measurement
测量点:
Tank
测量范围至:
0 … 30 m
介质:
Molten salt
过程温度:
+300 … +400 °C
过程压力:
0 … 0 bar
特殊挑战:
High temperatures, density changes
应用范围
The important criterion for the location a thermal solar plant is gaining the optimal amount of sunlight energy available at that site over the year. Molten salt is used to store this thermal energy produced on the days when there is abundant sunshine, this enables the production of electricity even on days with little or no direct sunlight via a heat exchange process. This molten salt is usually stored in two large vessels. One vessel contains salt at a lower temperature (approx. 300° C), the other contains salt at a higher temperature (approx. 400° C). Accurate level measurement is essential to monitor the system capacity.
建议的产品

VEGAPULS 62
Non-contact level measurement with radar in a molten salt storage tank.
- High measuring precision, independent of product properties
- Reliable measurement for extremely high temperature ranges
- Maintenance free due to contactless measurement
量程 - 距离
35 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar
