Sewer network

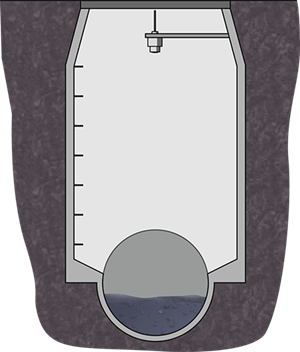

Level measurement in a sewer network
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Water level
Measuring range up to:
0 … 2 m
Medium:
Effluent/rainwater
Process temperature:
0 ... +40 °C
Process pressure:
+1 … +2 bar
Special challenges:
Humidity, condensation, foam
Application
Wastewater from households and industrial operations is carried through a sewerage system to the clarification plant. In large sewer systems, the water levels are monitored at key points in the network. Level measurement in the sewer allows an accurate assessment of the degree of utilization of the conduit system.
Your benefit
Reliable
Reliable function even when subjected to flooding
Cost effective
Maintenance-free operation
User friendly
Simple installation and setup
Recommended products
VEGAPULS C 21
Non-contact radar level measurement in the sewer main
- Reliable overfill detection without requiring a fouling-prone submergence shield
- Highly resistant materials ensure a long service life and maintenance-free operation
- Secure, user-friendly wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
