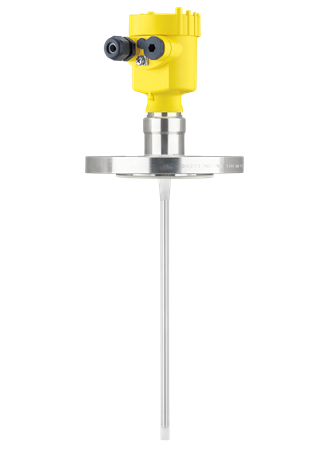

VEGAFLEX 83

TDR sensor for continuous level and interface measurement of liquids

For aggressive media or extremely high hygienic requirements


Application area

PFA coated or polished sensor. Even in applications with steam, buildup, foam or condensation, the sensor delivers precise and reliable readings.

The VEGAFLEX 83 level sensor measures maintenance-free agressive liquids or liquid media with highest hygienic requirements. Even in applications with vapour, buildup, foam generation and condensation, the sensor delivers precise and reliable measured values. The VEGAFLEX 83 is the economical and ideal solution for your application.

Your benefit

  • The gap-free hygienic design ensures simple and reliable cleanability
  • The maintenance-free operation increases the plant efficiency
  • The guided adjustment enables a simple, time-saving and reliable setup

Configure product

Configure product
Application
Technical specifications
Documentation
Accessories
Configure product

Guided radar level sensor for sterile containers and hygienic applications

The VEGAFLEX 83 guided radar level sensor is ideal for level and interface (separation layer) measurement in tanks or sterile containers in the food and pharmaceutical industry. With its bare stainless steel probe, it meets the highest standards of hygiene and is the perfect solution for all hygienically sensitive media. The high-quality stainless steel probe easily withstands aggressive or corrosive liquids. Measurement is completely independent of product properties such as density or temperature, as well as foam formation or build-up.

The VEGAFLEX 83 guided radar level sensor is a special probe for hygienically sensitive liquids, e.g. for:

  • Level measurement in a ketchup mixer
  • Level measurement in milk tanks
  • Level measurement in acid containers

Other applications

Reaction vessel with solvents

Level and pressure measurement and point level detection in mixing processes

Level measurement and point level detection in mixing processes

To the application

Batch holding tank on a filling system

Level measurement in the holding tank of a filling system

Level measurement in the holding tank of a filling system

To the application

Stripping column for landfill leachate

Level measurement in a stripping column

Level measurement in a stripping column

To the application

Exhaust air cleaning in a wafer washing facility

Technical specifications
Measuring range - Distance
32 m
Process temperature
-40 ... 150 °C
Process pressure
-1 ... 16 bar
Accuracy
± 2 mm
Version
Rod ø 10 mm, PFA-coated
Exchangeable rod ø 8 mm, polished
Exchangeable rod ø 8 mm, electropolished
Exchangeable rod ø 8 mm, electropolished, can be autoclaved
Cable ø 4 mm with gravity weight, PFA-coated
Materials, wetted parts
PFA
316L
TFM-PTFE
Flange connection
≥ DN25, ≥ 1"
Hygenic fittings
Clamp ≥ 2", DN50 - DIN32676, ISO2852
Clamp ≥ 3", DN65 - DIN32676, ISO2852
Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
Slotted nut ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
Hygienice flange connection ≥ DN50 DIN11864-2
Swagelok VCR screwing
Hygienic collar clamp ≥ DN33 - DIN 11864-3
Safety ingold
Seal material
EPDM
FKM
FEPM
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART - two-wire
Modbus
4 … 20 mA/HART - four-wire
Ambient temperature
-40 ... 80 °C
Approvals
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
Explosion protection
Intrinsic safety Ex ia
Pressure-tight encapsulation Ex d
Protection through housing St Ex
Foodstuffs/Pharma
EHEDG
FDA
Ship approval
Ship approval
Overfill protection
WHG
VLAREM II
SIL qualification
SIL2
Display & adjustment
Adjustment
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
Indication
Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82

Drawing generator

Generate 2D and 3D drawings for your specific configuration.
