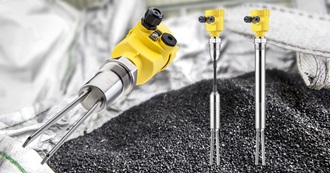

A simple, reliable point level vibration switch
The VEGAWAVE vibrating level switches reliably detect point level with exceptional accuracy directly at the mounting position. These can be used for high and low point level detection of powders, bulk solids, and even solids under water in any industry.
- Measures a wide range of products from fine powders to large rocks
- Robust, heavy-duty forks that last
- Easy installation and setup with no medium required
- FDA Approval for foodstuff applications
- Special configuration to detect solids under water
- Five electronic signal outputs available
Navigate this page:

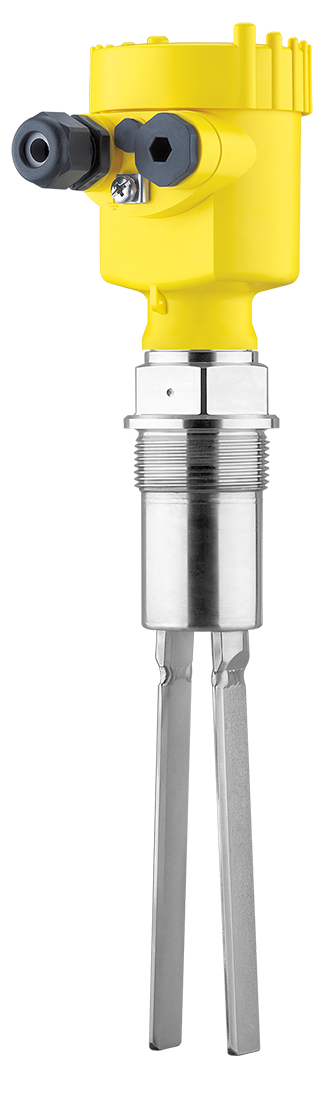

VEGAWAVE 61 Compact Version
Process temperature: -50 ... 250 °C
Process pressure: -1 ... 25 bar
Version: standard, detection of solids in water, or with temperature adapter
Materials, wetted parts: 316L
Threaded connection: ≥ G1½, ≥ 1½ NPT
Flange connection: ≥ DN50, ≥ 2"
Hygenic fittings: Clamp ≥ 2", DN50 - DIN32676, ISO2852
Protection rating
- IP 66/IP 68 (0.2 bar)
- IP 66/IP 67
- IP 66/IP 68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
Ambient temperature: -40 ... 80 °C

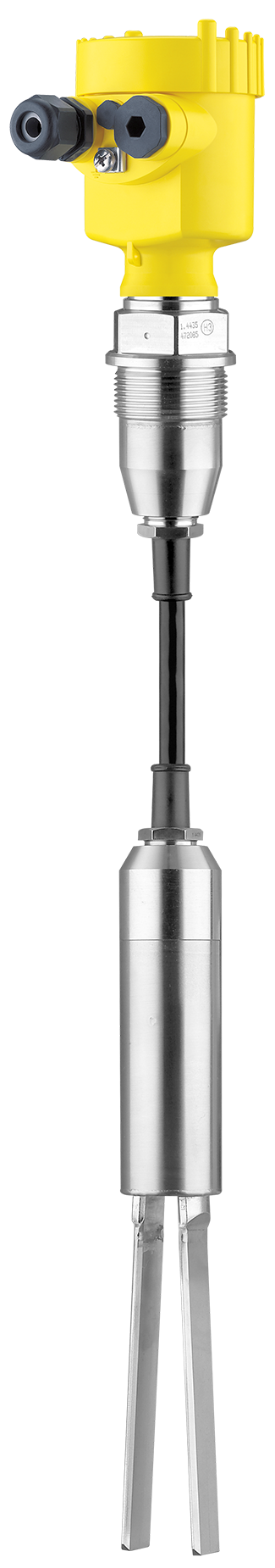

VEGAWAVE 62 With cable extension
With cable extension
Process temperature: -40 ... 150 °C
Process pressure: -1 ... 6 bar
Version: Detection of solids in water or suspension cable
Materials, wetted parts: 316L, FEP, PUR
Threaded connection: ≥ G1½, ≥ 1½ NPT
Flange connection: ≥ DN50, ≥ 2"
Seal material: CR, CSM
Protection rating:
- IP 66/IP 68 (0.2 bar)
- IP 66/IP 67
- IP 66/IP 68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
Ambient temperature: -40 ... 80 °C

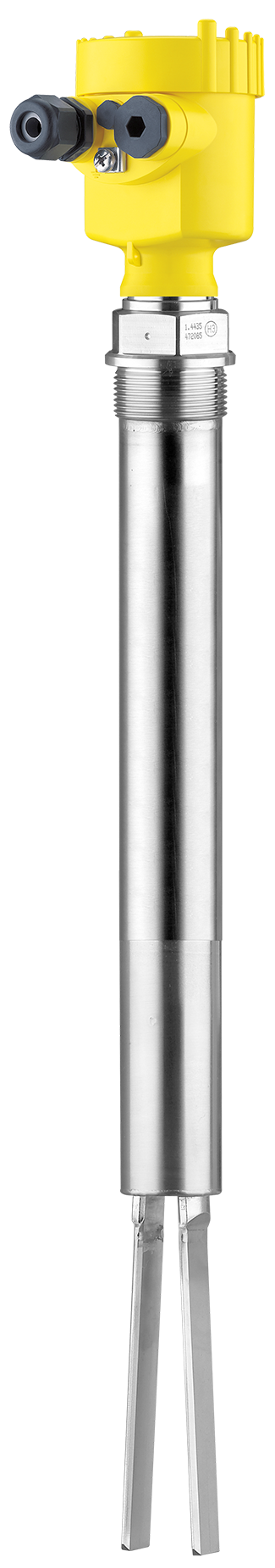

VEGAWAVE 63
With tube extension
Process temperature: -50 ... 250 °C
Process pressure: -1 ... 25 bar
Version: Detection of solids in water, with tube extension, or with temperature adapter
Materials, wetted parts: 316L
Threaded connection: ≥ G1½, ≥ 1½ NPT
Flange connection: ≥ DN50, ≥ 2"
Hygienic fittings: Clamp ≥ 2", DN50 - DIN32676, ISO2852
Seal material: no media contact
Protection rating:
- IP 66/IP 68 (0.2 bar)
- IP 66/IP 67
- IP 66/IP 68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
Ambient temperature: -40 ... 80 °C
Common Industries
Related applications
Buffer tank
Buffer tank pressure measurement and point level detection
In the smelter, above the fused salt electrolysis bath there are small buffer tanks that are pneumatically fed via pipelines. The alumina powder is dispensed into the melt bath in small quantities from these tanks. The filling of the buffer tank is controlled by the feed pressure. Full and empty alarms ensure optimal charging of the powder.
Reliable
Reliable function under all operating conditions
Cost effective
Simple installation into existing vessels
User friendly
Maintenance-free operation

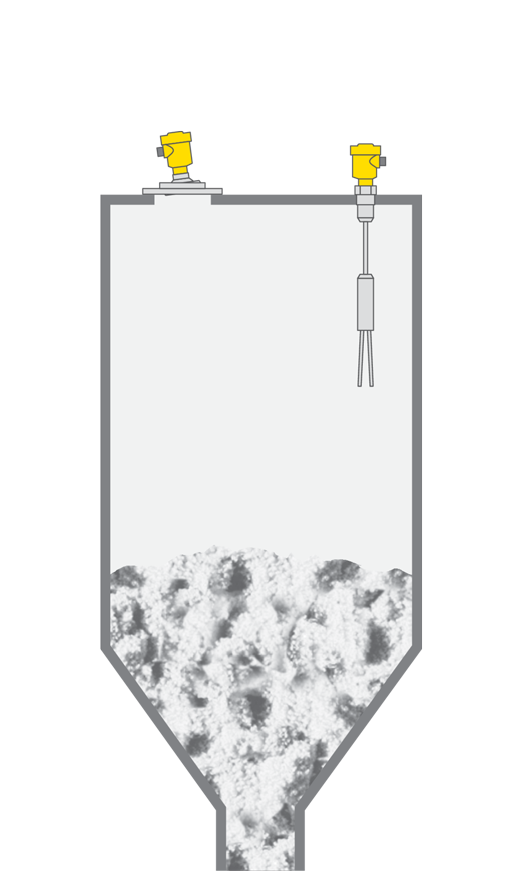

Lime powder silo
Level measurement and point level detection in lime powder silos
After the calcined lime is cooled, it is sorted into different sizes and stored for further processing. Most of the lime is further processed to lime powder. For optimum production planning, a reliable level measurement is a must.
Reliable
Reliable measurement ensured under all operating conditions
Cost effective
Optimal storage of the product
User friendly
Wear and maintenance-free
Raw meal silo
Level measurement and point level detection in raw meal silos
Before being burned in the rotary kiln, the material from the blending bed and the aggregates are ground to a fine raw meal in large mills. The powdery material is then transported to the silo by a pneumatic conveyor system. Reliable monitoring of the level is essential for optimal raw material storage.
Reliable
Reliable measurement ensures a continuous supply of raw material
Cost effective
Optimal stocks ensure continuous production
User friendly
Maintenance-free operation
