VEGA Magnetic Level Indicators
VEGA’s magnetic level indicators (MLIs) are top-of-the-line engineered level measurement solutions where you need them. Magnetic level indicators offer a reliable, highly visible level indication and a superior alternative to maintenance-intensive sight glass gauges.
VEGAMAG 81Magnetic level indicator for visual level measurement
|
VEGAMAG 82Dual-chamber magnetic level indicator with redundant VEGAFLEX guided wave radar
|
VEGAMAG 83Single chamber magnetic level indicator with electronic non-contact VEGAPULS radar
|

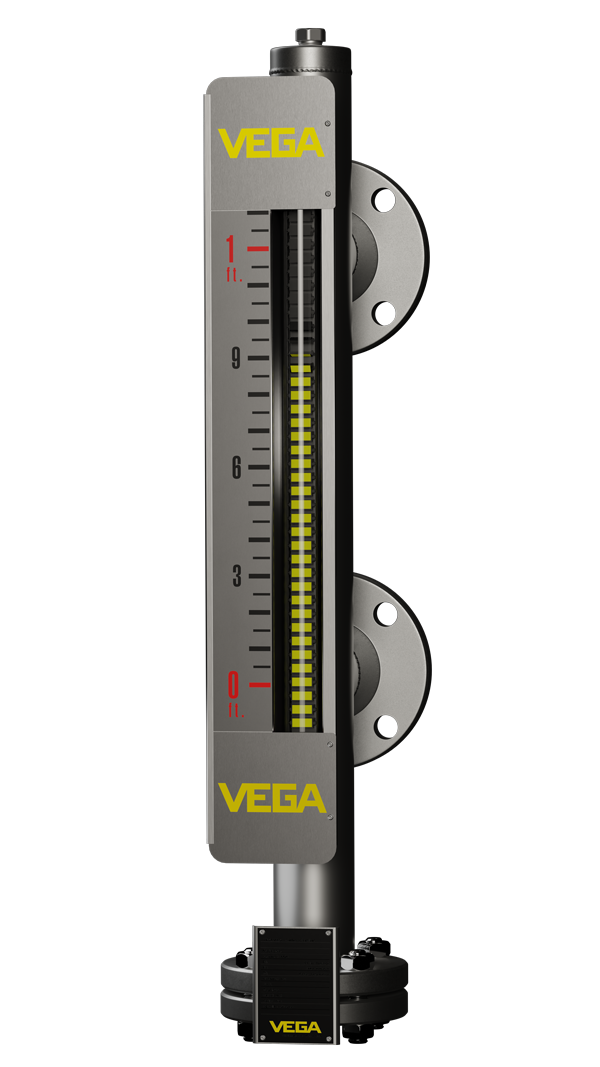

VEGAMAG 81
Application area
The VEGAMAG 81 magnetic level indicator consists of a bypass mounted on the side of an existing vessel. The float used in the bypass uses an integrated magnet system to transmit the liquid level contactlessly to the magnetic display mounted on the outside of the bypass. This provides an easy-to-see display of the vessel level, which can be seen from a distance.
Your benefit
Reliable, low-maintenance visual level indication
Designed to comply with ASME B31.3 or B31.1
Single-weld floats for a longer lifespan
Technical Specifications
| Measuring range | Up to 50ft (15m) |
| Liquid density | As low as 0.25 SG |
| Code compliance | Designed to comply with ASME B31.3 or B31.1 |
| Flag color | Yellow/black or red/white |
| Warranty | 5 years on mechanical components |
| Accessories | Point level switches, magnetostrictive level transmitter, thermal insulation, heat tracing |
| Process Pressure | Full vacuum to +5,000 Psig (345 bar) |
| Process Temperature | -320 F to +1000F (-196 C to 538 C) |

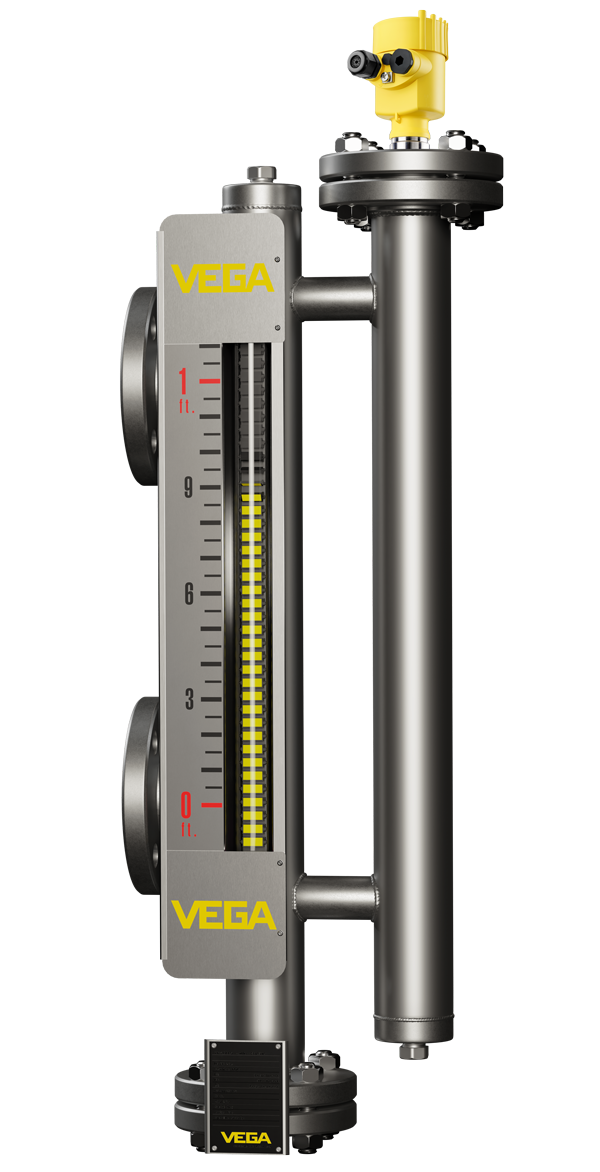

VEGAMAG 82
Application area
The VEGAMAG 82 combines a magnetic level indicator and an additional bypass bridle chamber to combine the benefits of visual indication and process control. The VEGAMAG 82 can be configured to mount to most standard vessel process connections as well as applications where interface measurements are needed.
Your benefit
Reliable, low-maintenance visual level indication and process control
Designed to comply with ASME B31.3 or B31.1
Single-weld floats for a longer lifespan
Technical Specifications
| Measuring range | Up to 50ft (15m) |
| Liquid density | As low as 0.25 SG |
| Code compliance | Designed to comply with ASME B31.3 or B31.1 |
| Flag color | Yellow/black or red/white |
| Flag size | Standard or wide available |
| Process Pressure | -1…345 Bar (-14.5…5,000 psi) |
| Process Temperature | -320 F to 842 F (-196 C to 450 C) |

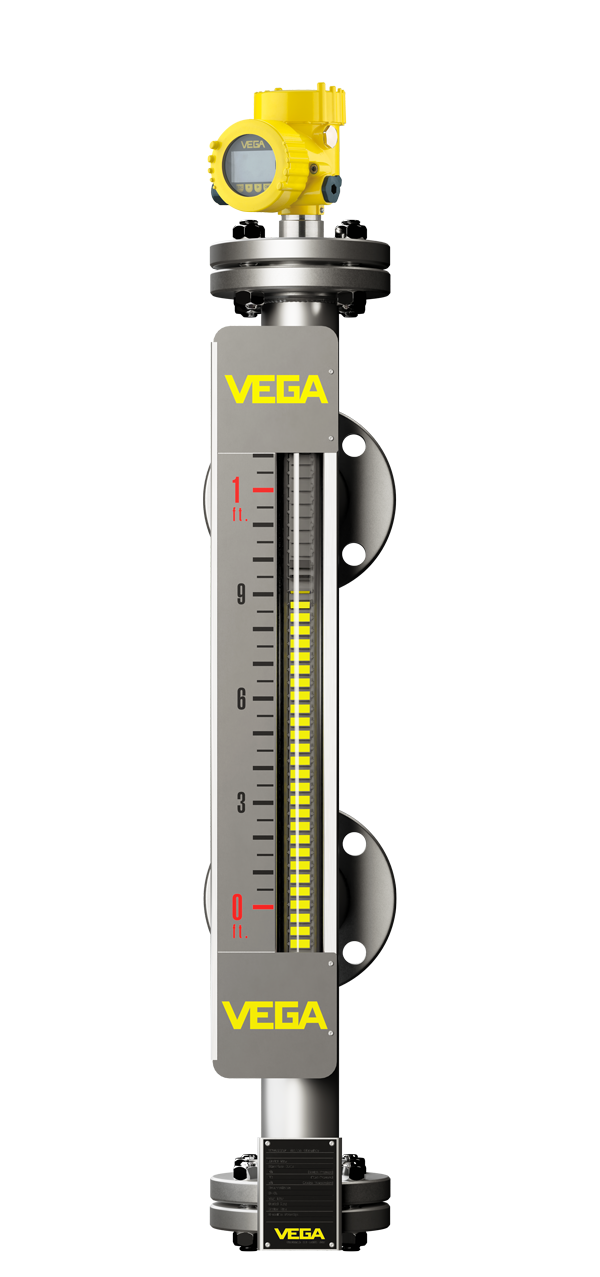

VEGAMAG 83
Application area
The VEGAMAG 83 is ideal for processes with low dielectric constant values, cryogenic applications, or light hydrocarbons. The VEGAMAG 83 pairs with a non-contact VEGAPULS radar instrument in the same chamber as the magnetic float. With this unique design, the radar tracks the metallic float top rather than the liquid surface.
Your benefit
Reliable, low-maintenance visual level indication for challenging applications
Designed to comply with ASME B31.3 or B31.1
Single-weld floats for a longer lifespan
Technical Specifications
| Measuring range | Up to 50ft (15m) |
| Liquid density | As low as 0.25 SG |
| Code compliance | Designed to comply with ASME B31.3 or B31.1 |
| Flag color | Yellow/black or red/white |
| Flag size | Standard or wide available |
| Process Pressure | -1…160 Bar (-14.5…2,320 psi) |
| Process Temperature | -320 F to 842 F (-196 C to 450 C) |
Magnetic level indication solutions for a variety of industries
Magnetic level indicators provide a visual representation of level measurements in vital applications. Their customized and robust design ensures a long service life and a high return on investment, no matter the industry. Check out all the industries VEGA serves.
Common Applications
Reflux accumulator drum
Level measurement in the reflux accumulator drum
To the applicationSour water stripper
Interface measurement in the sour water stripper

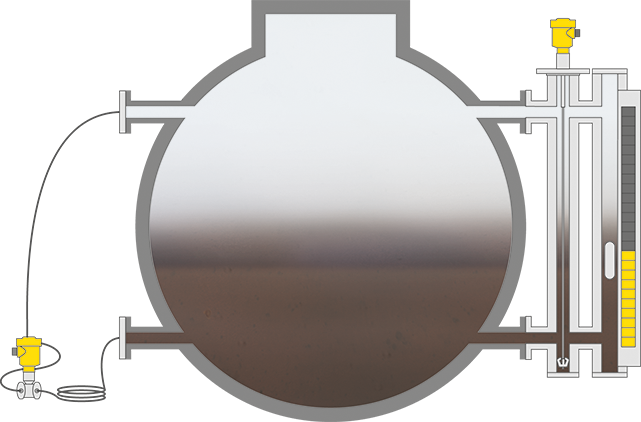

To the applicationPropane bullets
Level measurement in propane bullets
To the applicationSeparator
Level and interface measurement and point level detection in separators
To the applicationWant more information?
