Pressure Sensors
VEGABAR 14 and VEGABAR 17: What you need to know
Pressure is one of the oldest and most trusted process measurements because it’s reliable and repeatable. The VEGABAR 14 with ceramic measuring cell and VEGABAR 17 with metallic measuring cell are universal, cost-effective pressure sensors for the measurement of gases, vapors, and liquids.
Quick Facts
- Small mounting options for use in tight spaces
- High plant availability through maximum overload and vacuum resistance
- Abrasion resistant ceramic measuring cell available with VEGABAR 14

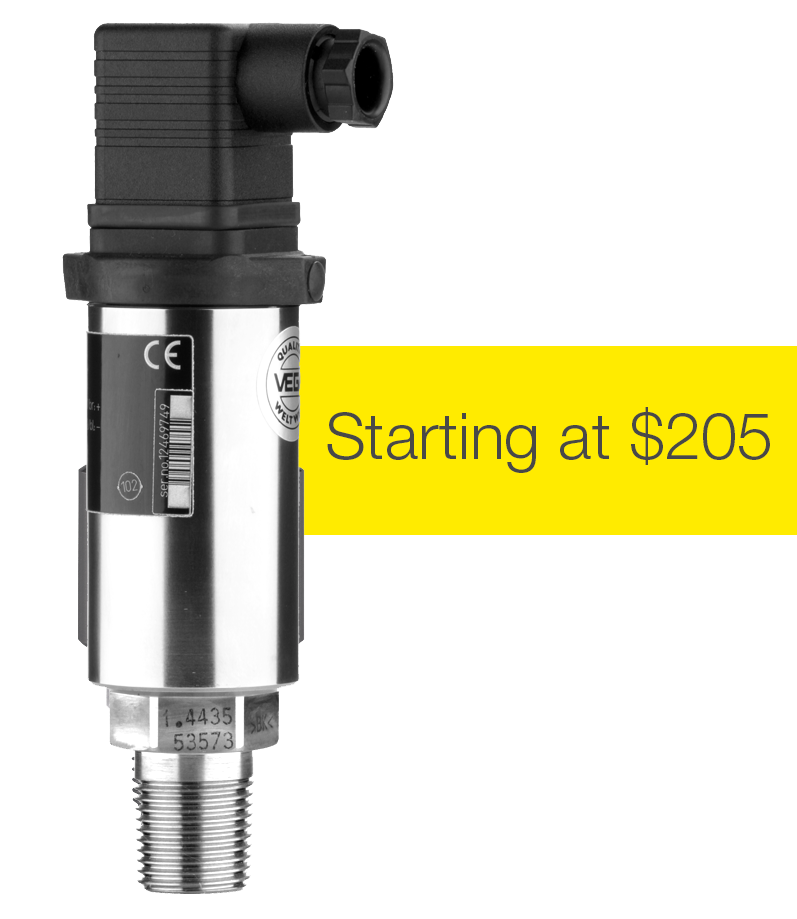

VEGABAR 14
Measuring range – Distance: -
Measuring range – Pressure: -1 ... 60 bar
Process temperature: -40 ... 100 °C
Process pressure: -1 ... 60 bar
Accuracy: 0.3 %
Materials, wetted parts:
- PVDF
- 316L
- Duplex (1.4462)
Threaded connection: ≥ G½, ≥½ NPT
Seal material: EPDM, FKM, FFKM
Protection rating
- IP 67
- IP 65
- IP 68 (0.2 bar)
- IP 68 (0.5 bar)
Output: 4 … 20 mA
Ambient temperature: -40 ... 80 °C

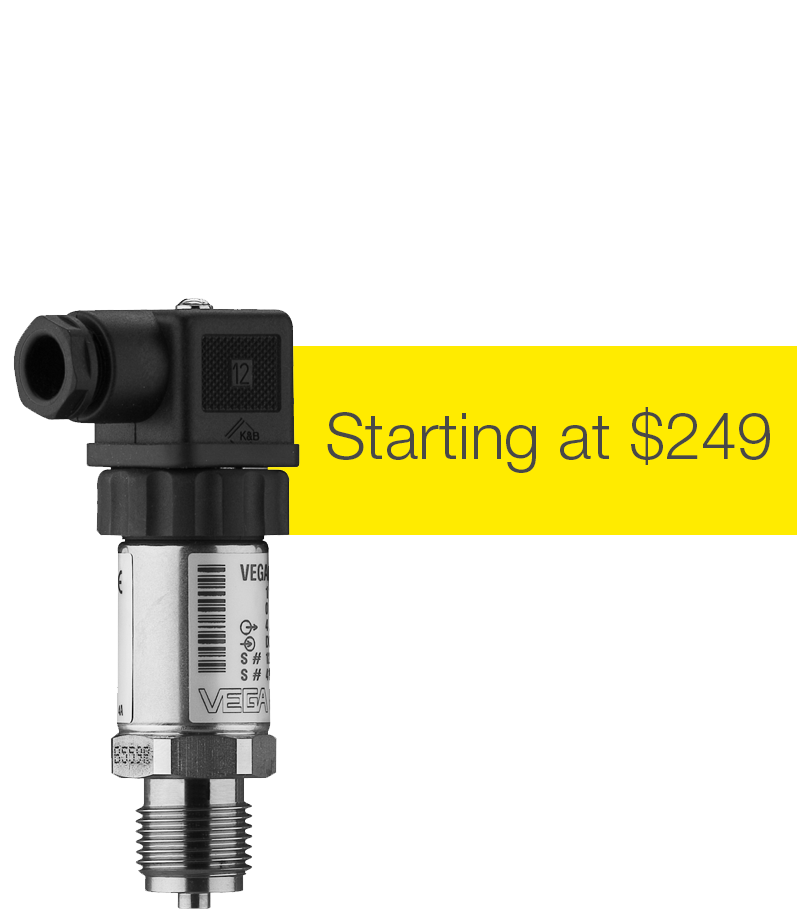

VEGABAR 17
Measuring range – Distance: -
Measuring range – Pressure: -1 ... 1000 bar
Process temperature: -40 ... 150 °C
Process pressure: -1 ... 1000 bar
Accuracy: 0,5 %
Materials, wetted parts: 316Ti (1.4571)
Threaded connection: ≥ G½, ≥½ NPT
Seal material: no media contact
Protection rating
- IP 67
- IP 65
- IP 68 (0.5 bar)
Output: 4 … 20 mA
Ambient temperature: -40 ... 80 °C

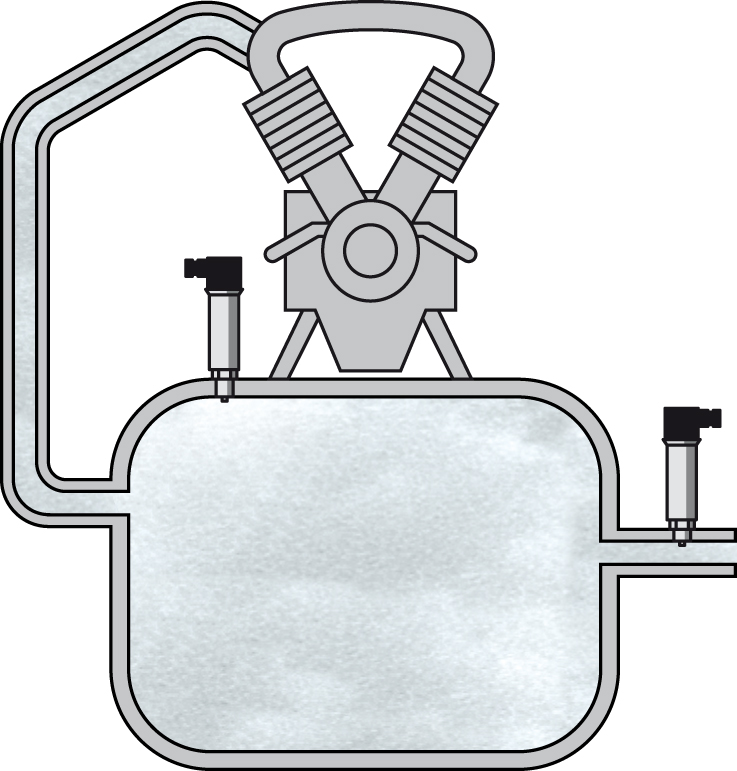

Compressed air monitoring

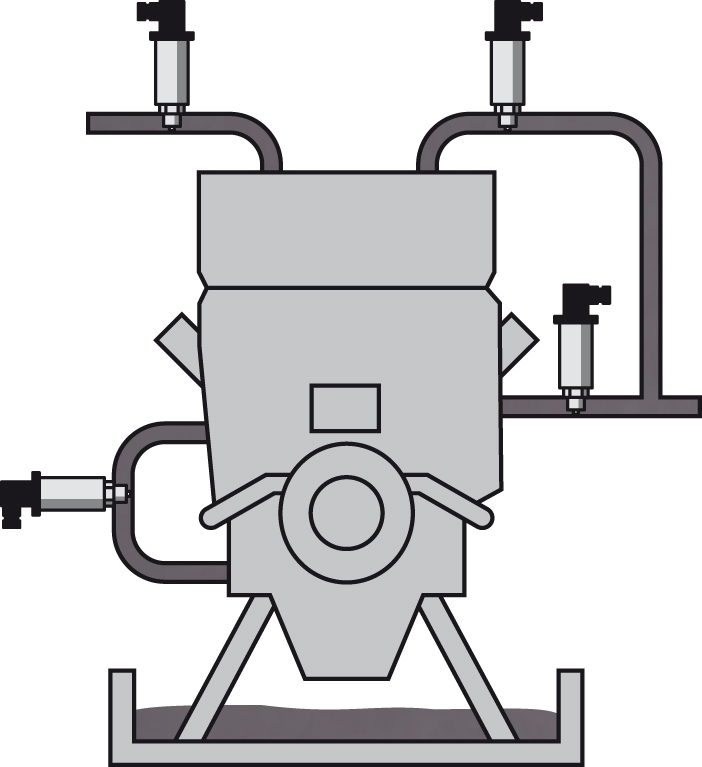

Engine test bench
