Pumping station
Level control in a pumping station
|
|
Process data
Measuring task:
Level measurement
Measuring point:
Tank
Measuring range up to:
0 … 10 m
Medium:
Wastewater
Process temperature:
0 … +35 °C
Process pressure:
0 … +1 bar
Special challenges:
Abrasion, foam, high humidity
Application

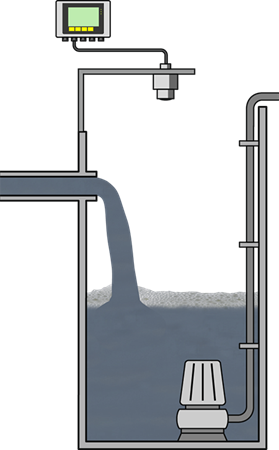

Wastewater from households and businesses, together with surface water, is carried to the wastewater treatment plant via an extensive sewer network. If the natural gradient is not steep enough, numerous pumping stations are required to create a sufficient height difference. The level measurement in the inlet shaft is used for cost-effective control of the pumps.
Your benefit
Reliable
Reliable measurement of the level
Cost effective
Pump switching ensures optimal operating times
User friendly
Maintenance-free, trouble-free operation
Recommended products
Solution 1
Solution 2
VEGAPULS C 11
Non-contact level measurement with radar in the inlet shaft
- Exact measuring results unaffected by internal fixtures and foaming
- High plant availability thanks to wear and maintenance free measurement
- Highly corrosion resistant materials ensure a long service life
- Secure, user-friendly wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
8 m
Process temperature
-40 ... 60 °C
Process pressure
-1 ... 3 bar
VEGAMET 841
Controller and display instrument for pump control
- Universal controller for simple pump control
- Fast setup and commissioning thanks to simple menu navigation and application wizards
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA sensor input
Output
1 x 0/4 … 20 mA current output
3 x operating relay
1x failure relay (instead of operating relay)
VEGAWELL 52
Submersible hydrostatic level sensor for for cost-effective sump pit pump control
- Simple installation and reliable measurement in tight spaces
- Long term stability allows maintenance-free operation
- Robust ceramic measuring cell ensures reliable operation High accuracy through use of optimally graduated measuring cells
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-
VEGAMET 841
Controller and display instrument for pump control
- Universal controller for simple pump control
- Fast setup and commissioning thanks to simple menu navigation and application wizards
Protection rating
IP66/IP67, Type 4X
Input
1 x 4 … 20 mA sensor input
Output
1 x 0/4 … 20 mA current output
3 x operating relay
1x failure relay (instead of operating relay)
Do radar sensors measure reliably even with contamination?
