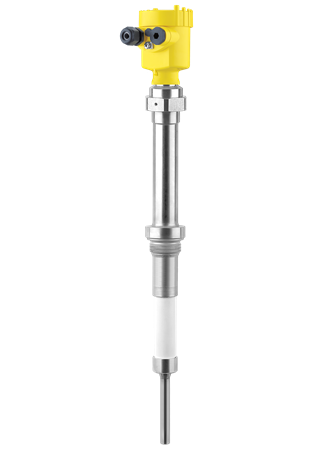

VEGACAP 67

Capacitive high temperature electrode for level detection

Rod probe, partly ceramic insulated

Application area

For bulk solids at high temperatures up to +400° C, Sensor length up to 32 m
The VEGACAP 67 point level sensor can be used universally for bulk solids. The probe is designed for high temperature applications.

Your benefit

  • High flexibility through shortenable probe
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Universal use in bulk solids through wide temperature range

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 400 °C [°C - °F]
Process pressure
  • -1 ... 16 bar [Bar - kPa - psi]
Version
  • Ceramic insulated cable probe
  • Ceramic insulated cable probe with crimping sleeve
  • Ceramic insulated rod probe
Materials, wetted parts
  • 316L
  • Ceramic
  • 316
Threaded connection
  • ≥ G1½, ≥ 1½ NPT
Flange connection
  • ≥ DN50, ≥ 2"
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °C
Display & adjustment
Indication
  • Pluggable display module PLICSLED
