VEGATRENN 142

Dubbel-kanaals scheider voor 4...20mA /HART sensoren

Dubbel kanaal , actief


VEGATRENN 142
VEGATRENN 142

Toepassingsgebied

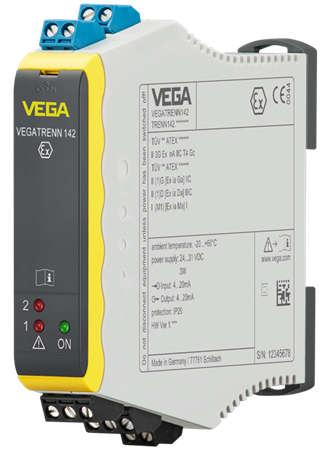

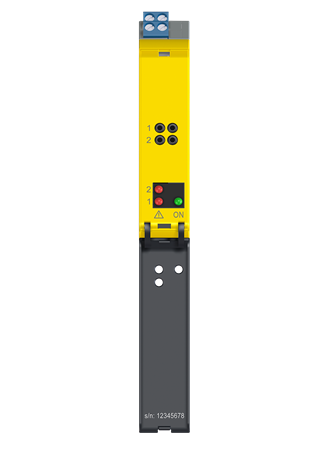

The double channel VEGATRENN 142 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 142 is used in all industries als with Ex applications. The VEGATRENN 142 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Uw voordelen

  • Simple installation though carrier rail mounting as well as detachable, coded terminals
  • Complete HART permeability enables free access to sensor settings
  • Universally applicable Ex separator for all 4 ... 20 mA/HART sensors (use in Ex area is optional)
  • For auxiliary voltage 20.4 ... 34.1 V DC to supply the device and the connected sensors

Basisprijs

€ 234.00

Exacte informatie over prijzen en levertijden is te vinden in de configurator.

Geschaalde prijzen

Aantal Prijs
vanaf 1 € 234.00
vanaf 5 10 % Korting
vanaf 10 Neem contact met ons op!
Configureren en bestellen
Technische gegevens
Documentatie
Configureer product
Technische gegevens
Protection rating
  • IP20
Input
  • 2 x 4 … 20 mA sensor input
Output
  • 2 x 4 ... 20 mA
Ambient temperature
  • -20 ... 60 °C
Goedkeuringen
Scope
  • ATEX / Europe
  • EAC (GOST) / Belarus
  • EAC (GOST) / Kazakhstan
  • EAC (GOST) / Russia
  • IEC / worldwide
  • NEPSI / China
  • UKR Sepro / Ukraine
  • c-UL-us
  • UKEX
SIL qualification
  • SIL2
Weergave en bediening
Indication
  • LED
