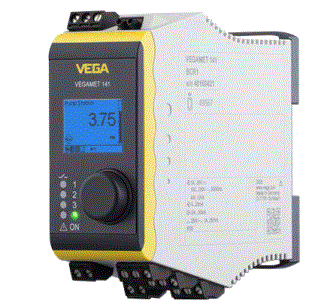

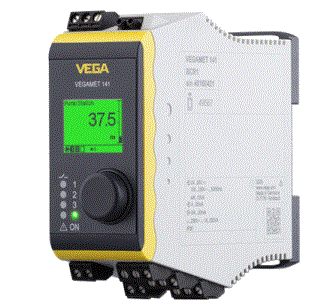

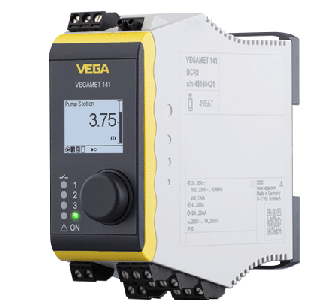

VEGAMET 141
Compact controller and display instrument for level sensors
For one 4… 20 mA sensor, carrier rail mounting
Uygulama sahasi
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
The VEGAMET 141 controller feeds the connected 4 ... 20 mA sensor, processes the measured values and displays them. The compact design is ideal for mounting on carrier rails in switching cabinets. A graphic display as well as a turn/push button for quick on-site control of the measuring point is also integrated.
With VEGAMET 141, limit values can be reliably monitored and relays, e.g. for overfill protection according to WHG, can be switched. It enables simple pump control, flow measurement on open flumes and weirs and summation.
Due to its various possibilities it is suitable for many industrial branches as well as for plant manufacturers.
Yararlari
- Complex programming of control tasks is no longer necessary
- Simple and safe setup and diagnosis of measuring points via smartphone
- Easy control of the measuring point by graphic display, even in the dark
Base price
€ 430.00
Fiyatlar ve teslim tarihleri hakkında daha kesin bilgileri konfigüratörde bulabilirsiniz.
Ölçekli fiyatlar
Miktar | Fiyat |
---|---|
den 1 | € 430.00 |
den 5 | 10 % İndirim |
den 10 | Bize ulaşın |
Ürün karsilastirmasi
Birbiri ile karsilastirabilmek için farkli ürünler seçin.
Teknik veriler
Dökümanlar
Ürünü konfigüre et
Teknik veriler
Koruma sınıfı
- IP20, Type 1
Giriş
- 1 x 4 … 20 mA sensor input
Çıkış
- 1 x 0/4 … 20 mA current output
- 3 x röle çıkışı
- 1x failure relay (instead of operating relay)
Ortam sıcaklığı
- -20 ... 60 °C
Onaylar
Kapsam
- ATEX / Avrupa
- IEC / dünya çapında
- c-UL-us
- UKEX
Gösterge ve kullanım
Ayar
- Smartphone / Tablet / PC via Bluetooth
- On-site operation with turn/push button
Gösterge
- LCD matrix display, black and white
- Backlight with colour change acc. to status
Çizim jeneratörü
Bireysel konfigürasyonunuz için 2B ve 3B çizimleri oluşturun.
