80 GHz雷达传感器VEGAPULS能更加可靠地监测面粉的加工 |
其产品种类从包括玉米饼、比萨饼和法式面包在内的特殊种类直到油酥点心、饼干和蛋糕。 产品名称,如 Maite、Osasuna或Silver Leaf等是市场上的知名品牌,代表不同面粉等级和种类,如粗糙、深色或白色、高精细等。
粉尘和内装件对视线的影响
在这里,VEGAPULS 69传感器凭借其强大的聚焦能力可实现真正的测量信号与干扰信号的分离。 该仪表利用仅有3.5°的发射角可以绕过障碍物进行测量。由于测量数据可靠,故Harinas Elizondo的三个加工厂里的技术人员和专家得以更好地掌控整个加工过程。
他们由此获得了更高的过程可靠性、系统可用性和完全可复制的产品质量。
值得客户信赖
Victor Menchaca Ortiz回忆道:“对于此类传感器能否满足我们的高要求,我们需要有绝对的把握。” 我们之所以十分小心,还因为,我们以前使用过其他制造商的传感器,包括导波雷达仪表,但其测量结果的可靠性并不理想。 今天,项目规划人员确信他已经找到了正确的解决方案。 众多测量点显示的准确的测量值令他振奋。 这些仪表在整合方面的便捷性也超出了他的期望: “必要时,传感器上的一切都能方便更换。 安装好后,我可以利用蓝牙方便舒适地调整参数。 我甚至无需攀爬到筒仓的上方。”
任何规模的订单
VEGA测量仪表就适合于此。 Polanco厂利用VEGASCAN 693控制器并通过以太网将其过程测量值传输到分散式控制系统中,由此得以随时掌控所有进货和出货情况。 此外,通过手机或平板电脑进行蓝牙配置后,可实现所有测量点的远程可视化和管理。尽管实现自动化的趋势不可阻挡,但工程师Menchaca Ortiz依然十分看重“人的因素”。
他深信,对于Harinas Elizondo而言,员工的技能和经验始终占据重要地位。 其因为还在于,他非常重视人工咨询与服务。 对他而言,除了完美的测量仪表外,服务理念是区分企业优劣的关键因素。 “VEGA的技术支持既快速又高效,他们和我们一样,将极大的热忱投入到那里的工作中。”
应用

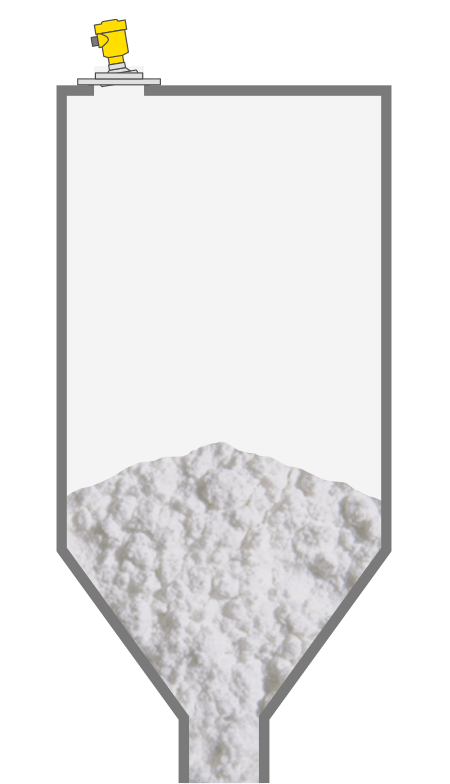

Flour silo
Level measurement in the flour silo
The different varieties of flour are most often stored in tall silos with very narrow chambers. Filling takes place regularly and is done pneumatically from the top. In order to produce the desired blend of different varieties at any time, a reliable level measurement in the individual silos is essential, even during filling. The process challenges include dust generation, strong air movement and a poorly reflecting product surface.

Reliable
Non-contact measurement, no wear and tear
Cost effective
One sensor for all silo heights
User friendly
Integrated cleaning system

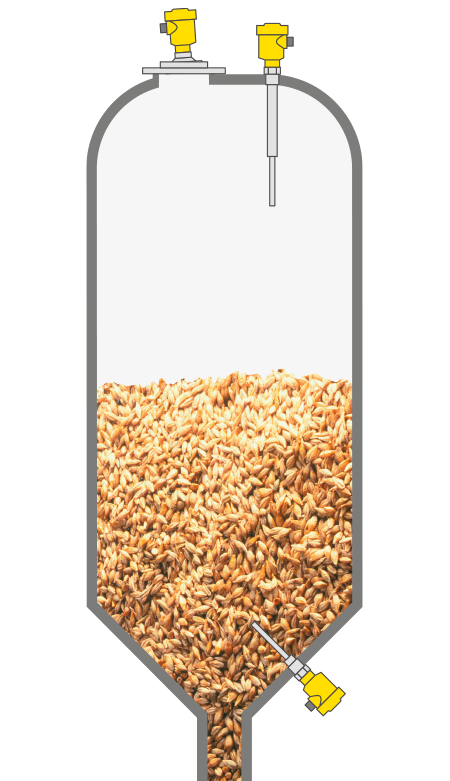

Grain silo
Level measurement and point level detection in the grain silo
Barley is stored in malt houses in silos up to 20 metres high before it is processed into malt for production of beer. Filling the silos generates a lot of dust and the material cone geometry constantly changes during the filling and emptying process. A reliable indication of the level ensures the smooth operation by sending signals corresponding to the level or possible limit levels of the grain.

Reliable
Reliable measurement independent of the medium
Cost effective
Better utilisation of silo capacity and product through reliable measurement
User friendly
Simple calibration

由供应商管理的仓库能快速可靠地采集面粉厂里的库存情况

VEGAPULS 69 型雷达传感器能可靠地测量小型计量容器中的物位。
