Grain silo

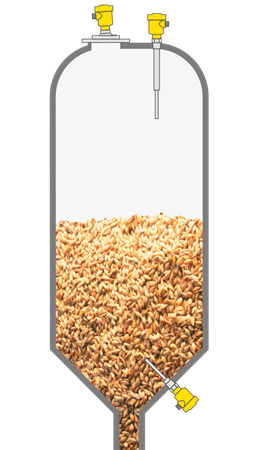

Level measurement and point level detection in the grain silo
过程数据
测量任务:
Level measurement and point level detection
测量点:
Silo
测量范围至:
20 m
介质:
Grain
过程温度:
-40 … +50 °C
过程压力:
0 … 0 bar
特殊挑战:
Strong dust generation during filling, tank geometry, bulk solid surface geometry
应用范围
Barley is stored in malt houses in silos up to 20 metres high before it is processed into malt for production of beer. Filling the silos generates a lot of dust and the material cone geometry constantly changes during the filling and emptying process. A reliable indication of the level ensures the smooth operation by sending signals corresponding to the level or possible limit levels of the grain.
您的获益
Reliable
Reliable measurement independent of the medium
Cost effective
Better utilisation of silo capacity and product through reliable measurement
User friendly
Simple calibration
建议的产品

VEGAPULS 6X
Radar level measurement in the grain silos for malt production
- Reliable measurement, independent of dusty environment
- High reliability through tight focusing
- Maintenance-free operation through non-contact measuring method
量程 - 距离
120 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar

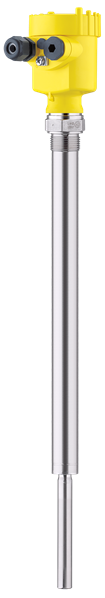

VEGAVIB 63
Vibrating level switch for detection of maximum levels in silos
- High measurement reliability thanks to compact rod design
- Reliable level detection, even with low bulk densities and changing media
- Simple installation near the filling opening
过程温度
-50 ... 250 °C
过程压力
-1 ... 16 bar
型式
Detection of solids in water
带管延长件

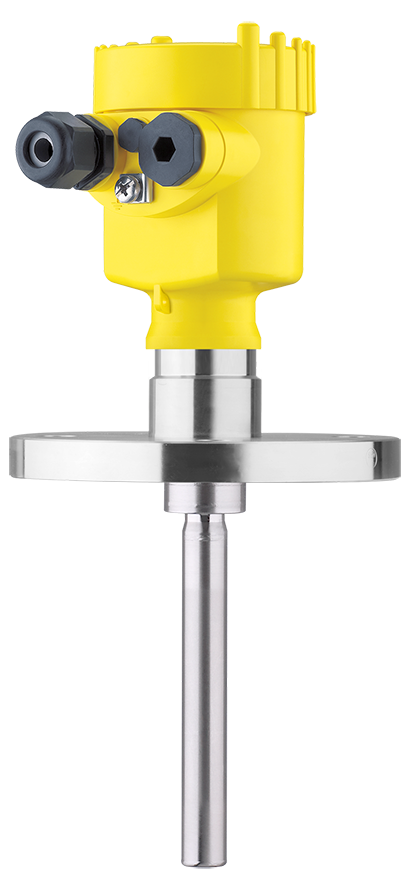

VEGAVIB 61
Vibrating level switch for detection of minimum level to avoid empty silo
- Compact rod design avoids buildup on the sensor
- Simple installation near the discharge opening
- Reliable function through product-independent switching point
量程 - 距离
-
过程温度
-50 ... 250 °C
过程压力
-1 ... 16 bar
