Storage tanks for toxic liquids

Level measurement and point level detection in storage tanks for toxic liquids

Process data

Measuring task:

Level measurement and point level detection

Measuring point:

Tank

Measuring range up to:

35 m

Medium:

Toxic liquid media

Process temperature:

-50 … +250 °C

Process pressure:

-1 … +64 bar

Special challenges:

Highly toxic media, chemically aggressive media, volatile media

Application

Some processes generate toxic intermediates that have to be stored in compliance with strict safety regulations. In order to be used in this area, the measurement technology deployed must meet special safety requirements when it comes to design and functional reliability. A trustworthy level measurement is critical for the storage of these toxic materials.

Your benefit

Reliable

Configuration of the measuring system provides maximum safety for personnel and the environment

Cost effective

High availability and maintenance-free operation

User friendly

User friendly Simple installation and setup

Recommended products

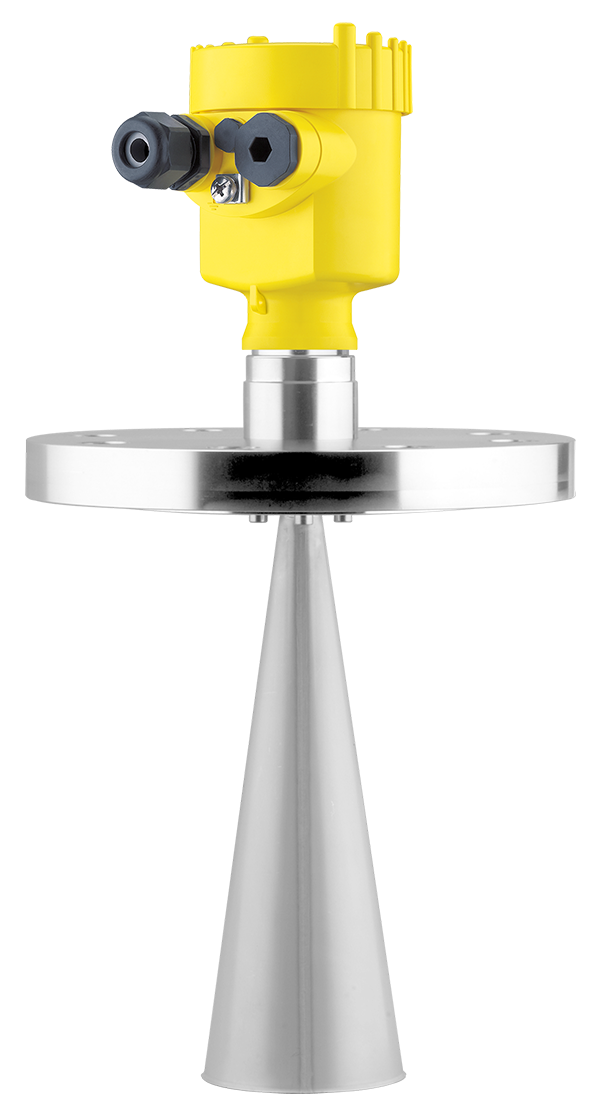

VEGAPULS 62

Continuous level measurement with radar in the storage tank for toxic media

Maximum safety with toxic media thanks to ceramic process isolation and additional glass feedthrough
Highly corrosion resistant materials ensure a long service life
Maintenance-free operation of the measuring system

Measuring range - Distance

35 m

Process temperature

-196 ... 450 °C

Process pressure

-1 ... 160 bar

Show Product

VEGASWING 63

Vibrating level switch for point level detection in the storage tank for toxic media

Universally applicable for almost all liquids
Additional safety through additional glass feedthrough that ensures a further separation from the process (Second Line of Defense)
Test button for easy checking of the measuring instrument during operation

Process temperature

-50 ... 250 °C

Process pressure

-1 ... 64 bar

Version

Standard

Hygienic applications

with gas-tight leadthrough

with tube extension

with temperature adapter
