Receiving watercourse

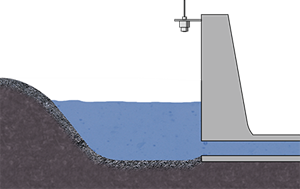

Level measurement in receiving watercourses
|
|
Process data
Measuring task:
Level measurement
Measuring point:
River channel
Measuring range up to:
15 m
Medium:
Water
Process temperature:
0 ... +50 °C
Process pressure:
-1 … +2 bar
Special challenges:
Outdoors
Application
After the wastewater has been treated, it is discharged into bodies of water through a drainage system. The local municiple water organisation requires measurement of the amount of wastewater being discharged into the receiving watercourse in order to determine how it affects the water quality downstream.
Your benefit
Safe
Reliable monitoring of water levels
Cost effective
Wide variety of simple mounting options
User friendly
Robust and weatherproof measuring unit
Recommended products
VEGAPULS C 21
Non-contact, continuous level measurement with radar
- Maintenance-free operation through non-contact 80 GHz radar technology
- Exact measuring results unaffected by ambient conditions
- High plant availability thanks to wear and maintenance free measurement
- Secure wireless operation via Bluetooth with smartphone, tablet or PC
Measuring range - Distance
20 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
