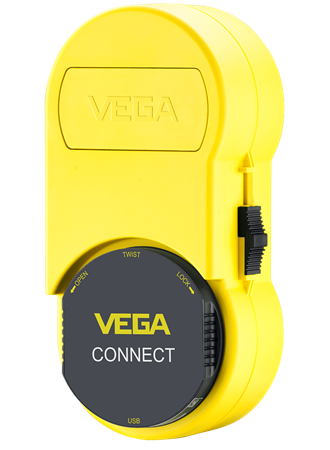

VEGACONNECT

Interface adapter between PC and communication-capable VEGA instruments
VEGACONNECT - Interface adapter between PC and communication-capable VEGA instruments
VEGACONNECT
VEGACONNECT - Interface adapter between PC and communication-capable VEGA instruments
VEGACONNECT
VEGACONNECT - Interface adapter between PC and communication-capable VEGA instruments
VEGACONNECT

Application area

The VEGACONNECT is an interface adapter for connection of communication-capable VEGA instruments to the USB interface of a PC or laptop. In conjunction with PACTware and VEGA DTM, the VEGACONNECT can be also used as universal HART modem for HART sensors also of other manufacturers.

Your benefit

  • Simple use on plics® series instruments
  • Simple voltage supply through USB interface
  • Manifold connection possibilities to different sensors by various attached connection cables, adapters and HART resistors

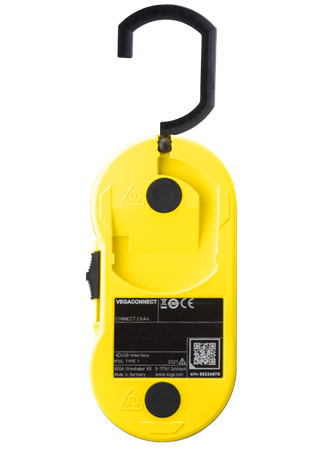

  • There are magnets and hooks on the junction box for convenient work in the field

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Housing material
  • Plastic
Protection rating
  • IP40
Ambient temperature
  • -20 ... 60 °C
Signal input (specify)
  • plics® sensor (serial) and HART communication

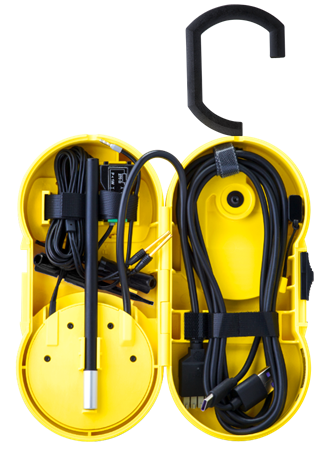

Components
  • USB cable
  • HART resistor
  • Bluetooth USB adapter
  • magnetic pen
  • I2C cable
Approvals
Scope
  • ATEX / Europe
  • EAC (GOST) / Russia
  • UKR Sepro / Ukraine
  • UKEX
Explosion protection
  • Intrinsic safety "i"
Display & adjustment
Adjustment
  • PACTware/DTM
