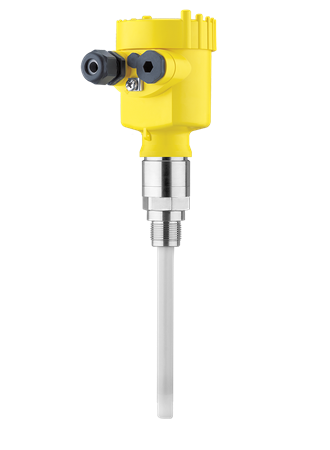

VEGACAP 63

Capacitive rod probe for level detection

Rod probe, fully PE or PTFE insulated

Application area

For liquids and bulk solids, non-abrasive, Sensor length up to 6 m
The VEGACAP 63 point level sensor can be used universalle for the measurement of non-abrasive liquids and bulk solids. The rod probe is fully insulated and the proven mechanical construction offers high functional safety.

Your benefit

  • Simple planning due to variable switching point
  • Savings through simple mounting and setup
  • Long lifetime and low maintenance requirement through robust mechanical construction

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Other applications

Chocolate storage tank

Level measurement and point level detection in chocolate storage tanks with agitator

Level measurement and point level detection in chocolate storage tanks with agitator

To the application

Separation vessel

Level measurement and point level detection in a separator vessel tank for recovery of raw materials

Level measurement and point level detection in a separator vessel tank for recovery of raw materials

To the application

Receiving tank for hazardous waste

Level measurement and point level detection in a receiving tank

Level measurement and point level detection in a receiving tank

To the application
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 200 °C [°C - °F]
Process pressure
  • -1 ... 64 bar [Bar - kPa - psi]
Version
  • PE insulation
  • PE insulation and concentric tube
  • PTFE insulation
  • PTFE insulation with screening tube PN1
  • PTFE insulation with screening tube PN16
  • PTFE insulation with screening tube PN40
  • PTFE insulation and concentric tube
Materials, wetted parts
  • PTFE
  • 316L
  • Alloy C22 (2.4602)
  • Alloy 400 (2.4360)
  • PE
  • Steel C22.8
Threaded connection
  • ≥ G½, ≥ ½ NPT

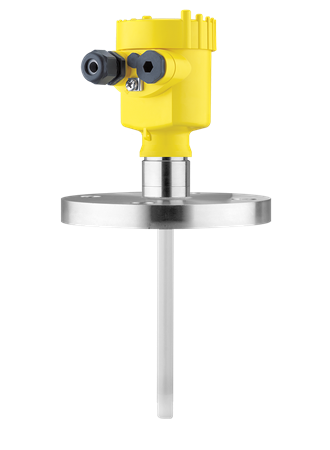

Flange connection
  • ≥ DN25, ≥ 1"
Seal material
  • no media contact
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °C
Approvals
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • EAC (GOST) / Belarus
  • EAC (GOST) / Kazakhstan
  • EAC (GOST) / Russia
  • IEC / worldwide
  • NEPSI / China
  • UKR Sepro / Ukraine
  • CSA / USA and Canada
  • CCC
Explosion protection
  • Intrinsic safety "i"
  • Flameproof enclosure "d"
  • Dust explosion protection through housing "t"
Foodstuffs/Pharma
  • FDA
Ship approval
  • ABS
  • BV
  • CCS
  • DNV
  • LR
  • RINA
  • RMROS
Overfill protection
  • WHG
  • VLAREM II
SIL qualification
  • SIL2
Display & adjustment
Indication
  • Pluggable display module PLICSLED
