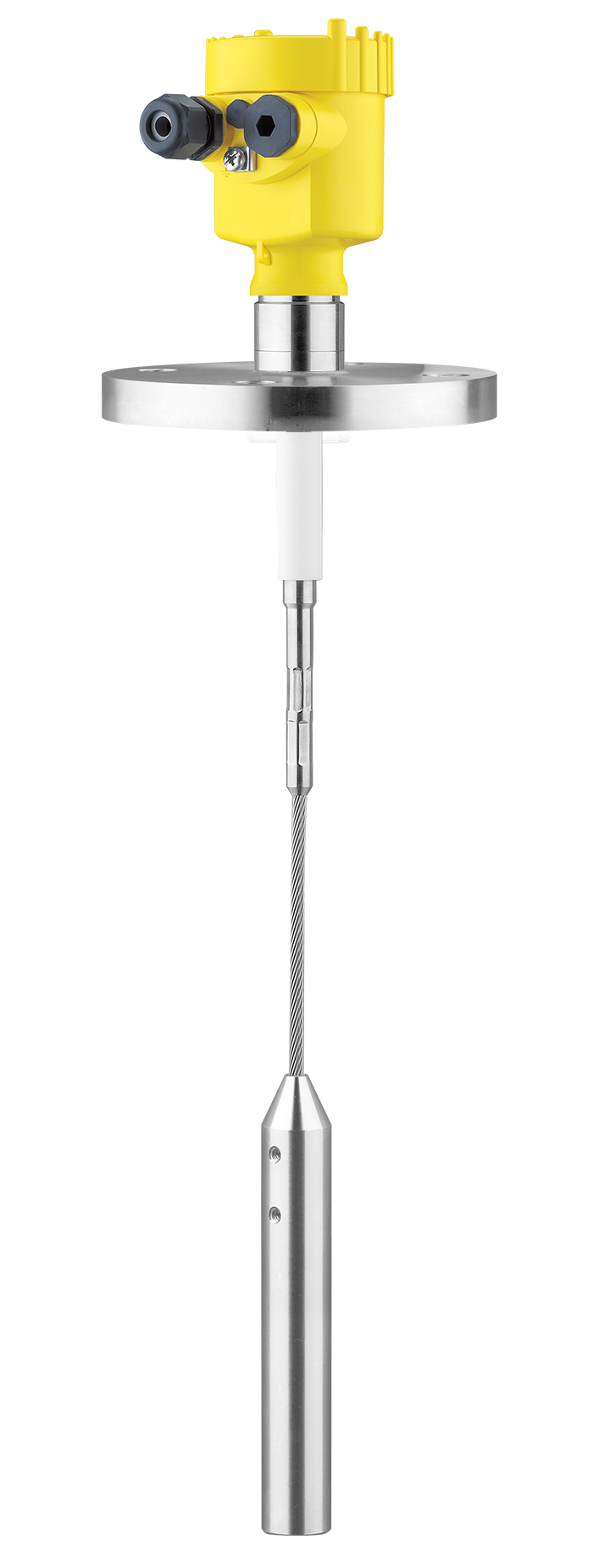

VEGACAP 65

Capacitive cable probe for level detection

Cable probe, partly PTFE insulated


Application area

For liquids and bulk solids, Sensor length up to 32 m
The VEGACAP 65 is a point level sensor for use in all industries. The partly insulated probe is suitable for the measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.

Your benefit

  • High flexibility through shortenable probe
  • Long lifetime and low maintenance requirement through robust mechanical construction
  • Reliable switching point due to large gravity weight

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Other applications

Clinker silo

Level measurement and point level detection in clinker silos

Level measurement and point level detection in clinker silos

To the application

Large storage silos

Level measurement and point level detection in large storage silos

Level measurement and point level detection in large storage silos

To the application

Mixing tower

Level measurement and point level detection in mixing towers

Level measurement and point level detection in mixing towers

To the application

Silo for filter dust

Silo for filter dust

Level measurement and point level detection in the filter dust silo

To the application
Technical specifications
Measuring range - Distance
  • - [Meter - Foot]
Process temperature
  • -50 ... 200 °C [°C - °F]
Process pressure
  • -1 ... 64 bar [Bar - kPa - psi]
Version
  • Cable ø 6 mm with screening tube without weight
  • Cable ø 6 mm with screening tube and gravity weight
  • Cable ø 6 mm with gravity weight
  • Cable ø 8 mm with abrasion protection without weight
  • Cable ø 8 mm with abrasion protection and gravity weight
  • Cable ø 8 mm with gravity weight
  • PA cable ø 12 mm with screening tube and gravity weight
Materials, wetted parts
  • PTFE
  • 316L
  • PA
  • PEEK
  • Steel
Threaded connection
  • ≥ G1, ≥ 1 NPT
Flange connection
  • ≥ DN50, ≥ 2"
Housing material
  • Plastic
  • Aluminium
  • Stainless steel (precision casting)
  • Stainless steel (electropolished)
Protection rating
  • IP66/IP68 (0,2 bar)
  • IP66/IP67
  • IP66/IP68 (1 bar)
Output
  • Relay (DPDT)
  • Contactless electronic switch
  • Transistor (NPN/PNP)
  • Two-wire
Ambient temperature
  • -40 ... 80 °C
Approvals
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • EAC (GOST) / Belarus
  • EAC (GOST) / Kazakhstan
  • EAC (GOST) / Russia
  • IEC / worldwide
  • NEPSI / China
  • UKR Sepro / Ukraine
  • INMETRO / Brazil
  • CCC
Explosion protection
  • Intrinsic safety "i"
  • Dust explosion protection through housing "t"
Ship approval
  • ABS
  • BV
  • CCS
  • DNV
  • LR
  • RINA
  • RMROS
Overfill protection
  • WHG
  • VLAREM II
SIL qualification
  • SIL2
Display & adjustment
Indication
  • Pluggable display module PLICSLED

Product catalog

Capacitive

    • EN
    • DE
    • CS
    • ES
    • FR
    • IT
    • NL
    • PL
    • PT
    • TR
    • ZH
Download

Product information

VEGACAP 62, 65, 66, 67

    • EN
    • US
    • DE
    • ES
    • FR
    • IT
    • NL
    • PT
    • ZH
Download

Specification sheet

VEGACAP 65

Relay (DPDT)

    • EN
    • US
    • DE
    • ES
    • FR
    • IT
    • NL
    • PT
    • TR
    • ZH
Download

Operating instructions

VEGACAP 65

Relay (DPDT)

    • EN
    • DE
    • CS
    • DA
    • ES
    • FI
    • FR
    • HU
    • IT
    • KK
    • KO
    • NL
    • NO
    • PL
    • PT
    • SV
    • TR
    • UK
    • ZH
Download

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all downloads
Indicating instruments
Controllers
Accessory
Spare parts

PLICSLED

PLICSLED-off

Universal display module suitable for all sensors of the VEGA plics® family with relay output

Show Product

VEGATOR 141

Single channel signal conditioning instrument for level detection - 4 … 20 mA

Transmission of 4 ... 20 mA signals for level signalling

kr 3,020.00

Base price

Show Product

VEGATOR 142

Double channel signal conditioning instrument for level detection - 4 … 20 mA

Transmission of 4 ... 20 mA signals for level signalling

kr 4,300.00

Base price

Show Product

Process fitting adapter VEGACAP/CAL60

Process fitting adapter VEGACAP/CAL60

Electronics VEGACAP series 60

Process component VEGACAP 65
