Silage tank

Level measurement and point level detection in the storage tank for fish waste

Process data

Measuring task:

Level and point level measurement

Measuring point:

Tank

Measuring range up to:

20 m

Medium:

Fish silage

Process temperature:

-20 ... +30 °C

Process pressure:

0 … 0 bar

Special challenges:

Foam, buildup

Application

Fish waste and scraps are the valuable raw material for fish silage, which in turn is a protein-rich raw material for the production of fish meal and dry fish feed. The acids used during production enable controlled growth of bacteria. The levels in the storage tanks must be carefully and reliably monitored. The visualisation of current process and storage status is handled by VEGA Inventory System.

Your benefit

Reliable

Better, consistent product quality, because of precise monitoring

Cost effective

Simple setup and commissioning, completely maintenance free

User friendly

Universal, media-independent measurement technology

Recommended products

VEGAPULS 6X

Non-contact level measurement with radar in the silage tank

Maintenance-free operation thanks to non-contact measuring principle
Simple installation and setup
Reliable measurement unaffected by foam and buildup

Measuring range - Distance

120 m

Process temperature

-196 ... 450 °C

Process pressure

-1 ... 160 bar

Show Product

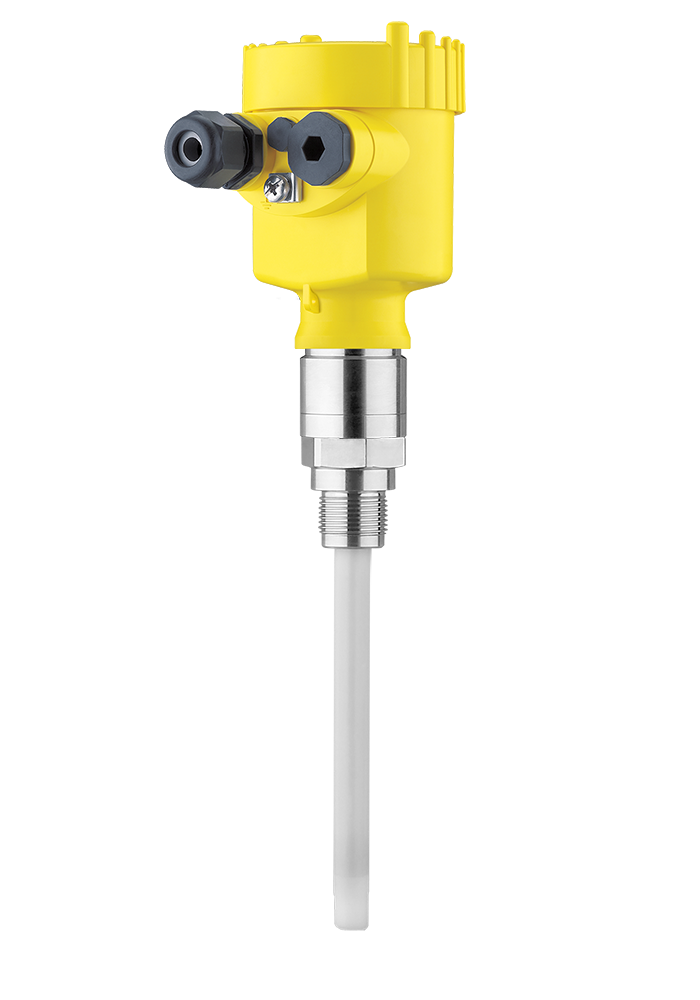

VEGACAP 64

Capacitive level switch as overfill protection in the silage tank

Millimetre-precise detection of the switching point, independent of the consistency of the medium
Reliable measurement unaffected by buildup and foam
Long service life and low maintenance requirement through robust construction

Measuring range - Distance

-

Process temperature

-50 ... 200 °C

Process pressure

-1 ... 64 bar
