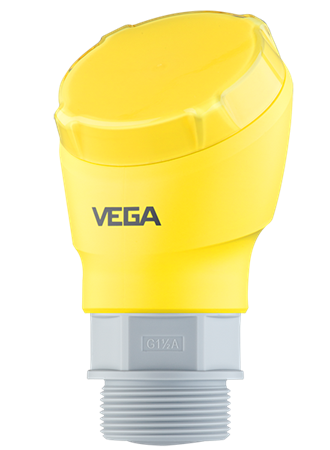

VEGAPULS 21
Compact radar sensor for continuous level measurement
For standard measuring tasks, plastic housing IP66/IP67, Type 4X
|
|
Application area
Your benefit
- Exact measurement results independent of medium properties and process conditions
- Maintenance-free operation due to non-contact 80 GHz radar technology
- High accuracy and reliability
Suitable accessories
|
Mounting bracket with adjustable sensor holder |
|
Mounting angle with adjustable bracket |
|
Universal flange for VEGAPULS BASIC line |
| Further accessories | |
Base price
Detailed information on prices and delivery times can be found in the Configurator.
Staggered Prices
| Quantity | Price |
|---|---|
| from 1 | $ 1,169.00 |
| from 5 | 10 % Discount |
| from 10 | Please contact us! |
Product comparison
All documents and software for this product can be found in our Download Center.
Show all downloadsOther applications
- 20 m [Meter - Foot]
- -40 ... 80 °C [°C - °F]
- -1 ... 3 bar [Bar - kPa - psi]
- ± 2 mm
- 80 GHz
- 8°
- PVDF
- G1½, 1½ NPT, R1½
- FKM
- Plastic
- IP66/IP67, Type 4X
- 4 … 20 mA/HART
- -40 ... 70 °C
- ATEX / Europe
- IEC / worldwide
- NEPSI / China
- INMETRO / Brazil
- CCOE / India
- KTL Korea
- CSA / USA and Canada
- FM / USA and Candada
- TIIS / Japan
- IA
- UKEX
- Intrinsic safety "i"
- FDA
- Drinking water
- EG1935/2004
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
- WHG
- VLAREM II
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
Drawing generator
Generate 2D and 3D drawings for your specific configuration.
Configure NowProduct catalog
Radar
Product information
VEGAPULS C 11, C 21, C 22, C 23, 11, 21, 31
Specification sheet
VEGAPULS 21
Two-wire: 4 … 20 mA/HART
Operating instructions
VEGAPULS 21
Two-wire: 4 … 20 mA/HART
Drawing generator
Further downloads for this product
All documents and software for this product can be found in our Download Center.

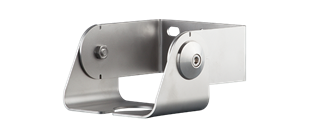

Show all downloadsMounting bracket with adjustable sensor holder
$ 105.00
Mounting angle with adjustable bracket
$ 179.00
Mounting bracket 200 mm with fixed sensor holder
$ 89.00
Hygienic adapter (G1½“) suitable for VEGAPULS 11, 21, 31, VEGAPULS C 11, C 21, C 22 and VEGAPULS Air 41
$ 128.00
Counter nut
Universal flange for VEGAPULS BASIC line
$ 124.00
Alignment device for vessel wall mounting for radar sensors with 1½" thread
$ 189.00
Threaded adapter 2" to 1½" suitable for VEGAPULS 11, 21, 31, VEGAPULS C 11, C 21, C 22 and VEGAPULS Air 41
$ 80.00
VEGAMET 141
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
$ 699.00
VEGAMET 142
2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
$ 899.00
VEGAMET 341
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
$ 769.00
VEGAMET 342
2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
$ 979.00
VEGAMET 841
1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 829.00
VEGAMET 842
2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 1,039.00
VEGAMET 861
1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 1,165.00
VEGAMET 862
2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 1,395.00
VEGAMET 391
Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry
Show ProductVEGATOR 141
VEGATOR 142
VEGADIS 82
External measured value display and adjustment for 4 ... 20 mA/HART sensors
$ 325.00

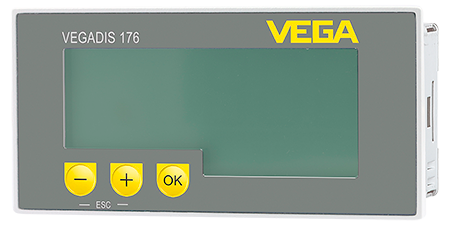

VEGADIS 176
VEGAMET 841
1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 829.00
VEGAMET 842
2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 1,039.00
VEGAMET 861
1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 1,165.00
VEGAMET 862
2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
$ 1,395.00
PLICSMOBILE T81
Measured data enquiry and remote parameter adjustment for a HART sensor
Show ProductVEGATRENN 141
VEGATRENN 142
VEGATRENN 151
Single channel separator in two-wire technology for 4 … 20 mA sensors
$ 202.00
VEGATRENN 152
Double channel separator in two-wire technology for 4 … 20 mA sensors
$ 299.00
