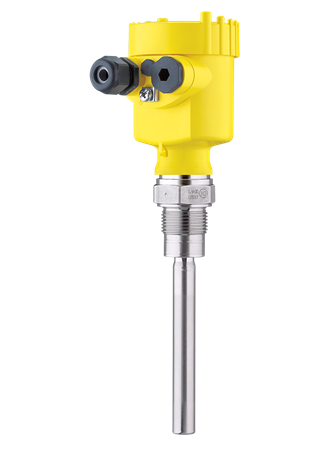

VEGAVIB 61

Vibrating level switch for granular bulk solids

For granulated bulk solids from density 20 g/l – compact version


VEGAVIB 61 - Vibrating level switch for granular bulk solids
VEGAVIB 61

Application area

It detects the limit level reliably and with millimetre accuracy directly at the mounting position. The smooth surface of the vibrating rod, without sharp corners or edges, prevents bulk material from getting stuck or jammed and is easy to clean.
The VEGAVIB 61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB 61 detects reliably and accurately the min. or max. limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.

Your benefit

  • Low maintenance costs
  • Minimum time and cost expenditure thanks to simple setup without medium
  • Reliable function through product-independent switching point

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product

Other applications

Grain silo

Level measurement and point level detection in the grain silo

Level measurement and point level detection in the grain silo

To the application

Small silos for baking ingredients

Level measurement and point level detection in small storage containers

Level measurement and point level detection in small storage containers

To the application
Technical specifications
Measuring range - Distance
- [Meter - Foot]
Process temperature
-50 ... 250 °C [°C - °F]
Process pressure
-1 ... 16 bar [Bar - kPa - psi]
Version
Standard
Detection of solids in water
Materials, wetted parts
316L
Threaded connection
≥ G1, ≥ 1 NPT
Flange connection
≥ DN 32, ≥ 1½"
Hygenic fittings
Clamp ≥ 1½" - DIN32676, ISO2852
Slotted nut ≥ 2", DN50 - DIN 11851
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 - DIN11864-1-A
Hygienic fittings ≥ DN25 - DIN11864-1-A
Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53
Hygienic fittings ≥ DN50 pipe ø70 - DIN11864-1-A
Seal material
no media contact
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
NAMUR
Ambient temperature
-40 ... 80 °C
Approvals
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
Explosion protection
Intrinsic safety "i"
Flameproof enclosure "d"
Dust explosion protection through housing "t"
Foodstuffs/Pharma
3A
EHEDG
FDA
SIL qualification
SIL2
Display & adjustment
Indication
Pluggable display module PLICSLED
