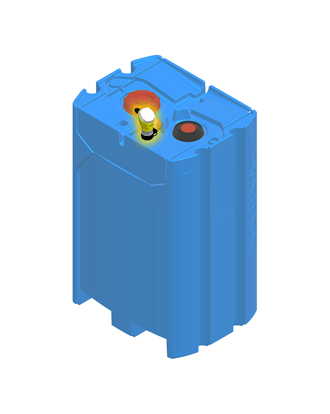

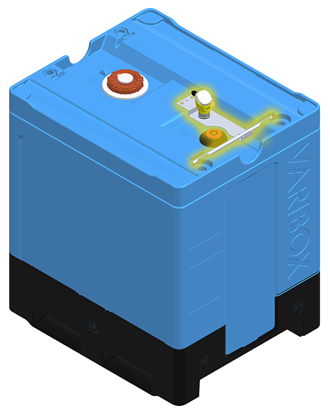

Mounting adapter for Varibox

Application area

The mounting adapter for Varibox enables non-contact level measurement from the outside through double-walled Varibox IBC containers. It was developed specifically for the Varibox Full Containment and Compact Containment systems and ensures optimal positioning of VEGA radar sensors. The adapter is compatible with various radar sensors, such as the VEGAPULS 11, 21, 31, C 11, C 21, C 22, and VEGAPULS AIR 41. The adapter comes with a safety cable for safe handling.

Suitable accessories

VEGAPULS Air 41

VEGAPULS 31
Further accessories

Configure product

Configure product

All documents and software for this product can be found in our Download Center.

Show all downloads
Application
Technical specifications
Documentation
Accessories
Configure product
Technical specifications
Threaded connection
  • G1½

Additional links

Further downloads for this product

All documents and software for this product can be found in our Download Center.

Show all downloads
Radar

VEGAPULS C 11

With fixed cable connection Protection IP66/IP68, Type 6P

Axial cable outlet, 4 ... 20 mA output, measuring range up to 10 m, accuracy ±5 mm, PVC cable with 10 m length

Show Product

VEGAPULS C 21

With fixed cable connection Protection IP66/IP68, Type 6P

Axial cable outlet, measuring range up to 20 m, accuracy ±2 mm, 4 ... 20 mA, HART, SDI-12 or Modbus output, Ex-approval optional

Show Product

VEGAPULS C 22

Lateral cable outlet, measuring range up to 20 m, accuracy ±2 mm, 4 ... 20 mA, HART, SDI-12 or Modbus output, Ex approval optional

Show Product

VEGAPULS 11

4 ... 20 mA output, measuring range up to 10 m, accuracy ±5 mm

Show Product

VEGAPULS 21

4 ... 20 mA/HART output, measuring range up to 20 m, accuracy ±2 mm, Ex approval optional

Show Product

VEGAPULS 31

4 ... 20 mA/HART output, measuring range up to 20 m, accuracy ±2 mm, Ex approval optional, on-site display and 3-button operation

Show Product

VEGAPULS Air 41

NB-IoT/CAT-M1, LoRa, measuring range up to 20 m, accuracy +/-2mm

Show Product
