VEGAFLEX 81
Sıvıların doluluk seviyesi ve ayırma katmanının devamlı olarak ölçülmesi için TDR sensörü
Her türlü sıvı için üniversel kullanımlı TDR sensörü
Uygulama sahasi
Yararlari
- El ajuste guiado permite una configuración sencilla, ahorro de tiempo y fiablidad
- Las sondas recortables ofrecen una estandarización sencilla y la más alta flexibilidad en la planificación
- Las amplias posibilidades de diagnóstico aseguran un funcionamiento sin mantenimiento y, por tanto, una elevada disponibilidad de la planta
Ürünü konfigüre et
Ürünü konfigüre etÜrün karsilastirmasi
Bu ürüne ait tüm dökümanlar ve yazılımlar İndirme Merkezimizde bulunabilir.
Tüm indirilenleri gösterTüm sıvılar için seviye ve arayüz ölçümü

Kılavuzlu radar sensörü:
- Amonyak depolama taklarında seviye ölçümünde
- Borularda seviye ölçümünde
- Tanklarda seviye ve arayüz ölçümünde güvenilir şekilde kullanılabilmektedir
- 75 m [Meter - Foot]
- -60 ... 200 °C [°C - °F]
- -1 ... 40 bar [Bar - kPa - psi]
- ± 2 mm
- Versión básica para cable intercambiable ø 2; ø 4 mm
- Versión básica para varilla intercambiable ø 8 mm
- Versión básica para varilla intercambiable ø 12 mm
- Versión coaxial de ø 21,3 mm para aplicaciones en amoniaco
- Versión coaxial de ø 21,3 mm con orificio simple
- Versión coaxial de ø 21,3 mm con orificio múltiple
- Versión coaxial de ø 42,2 mm con orificion múltiple
- Varilla intercambiable ø 8 mm
- Varilla intercambiable ø 12 mm
- Cable intercambiable ø 2 mm con peso tensor
- Cable intercambiable ø 4 mm con peso tensor
- Cable intercambiable de ø 2 mm con peso de centrado
- Cable intercambiable de ø 4 mm con peso de centrado
- Cable intercambiable de ø 4 mm sin peso
- Cable intercambiable recubierto de PFA y de ø4 mm con peso de centrado no recubierto
- PFA
- 316L
- Aleación C22 (2.4602)
- Aleación 400 (2.4360)
- Aleación C276 (2.4819)
- Dúplex (1.4462)
- 304L
- ≥ G¾, ≥ ¾ NPT
- ≥ DN25, ≥ 1"
- EPDM
- FKM
- FFKM
- Recubierto con silicona y FEP
- Vidrio de borosilicato
- Plástico
- Aluminio
- Acero inoxidable (fundición)
- Acero inoxidable (electropulido)
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- Dos hilos: 4 … 20 mA/HART
- Modbus
- Cuatro hilos: 4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / Europa
- CSA / Canada
- FM / EE. UU.
- EAC (GOST) / Bielorrusia
- EAC (GOST) / Kazajistán
- EAC (GOST) / Rusia
- IEC / Mundial
- NEPSI / China
- UKR Sepro / Ucrania
- INMETRO / Brasil
- CCOE / India
- KTL Korea
- UKEX
- Seguridad intrínseca "i"
- Encapsulado antideflagrante "d"
- Protección contra expolsión de polvo "t"
- FDA
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
- WHG
- VLAREM II
- SIL2
- PLICSCOM
- Ordenador, PACTware y DTM
- Comunicador HART
- Software p. ej., AMS™, PDM)
- Módulo de visualización/configuración PLICSCOM
- VEGADIS 81
- VEGADIS 82
Çizim jeneratörü
Bireysel konfigürasyonunuz için 2B ve 3B çizimleri oluşturun.
Simdi konfigüre etÜrün katalogları
Yönlendirilmiş radar
Ürüne ait bilgiler
VEGAFLEX 81, 83, 86
Ürün Veri Pusulası
VEGAFLEX 81
İki telli: 4 … 20 mA/HART
İşletim kılavuzu
VEGAFLEX 81
İki telli: 4 … 20 mA/HART
Çizim jeneratörü
Bu ürün için daha fazla Yüklemeler
Bu ürüne ait tüm dökümanlar ve yazılımlar İndirme Merkezimizde bulunabilir.
Tüm indirilenleri gösterBluetooth-USB-Adapter

Wireless adjustment of sensors and instruments via Bluetooth
Ürün detaylariVEGADIS 81

Remote measurement value indication and adjustment of plics® sensors
€ 320.00
VEGADIS 82

External measured value display and adjustment for 4 ... 20 mA/HART sensors
€ 250.00
VEGADIS 176

Magnetic pen for display/adjustment module PLICSCOM

Magnetic pen for on-site adjustment
Ürün detaylariVEGAMET 141

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
€ 430.00
VEGAMET 142

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
€ 550.00
VEGAMET 341

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
€ 460.00
VEGAMET 342

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
€ 590.00
VEGAMET 841

1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
€ 500.00
VEGAMET 842

2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
€ 630.00
VEGAMET 861

1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
€ 700.00
VEGAMET 862

2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
€ 840.00
VEGAMET 624

Measured value indication, simple control functions such as remote enquiry of measured values for a 4 ... 20 mA/HART sensor
Ürün detaylariVEGAMET 625

Measured value indication, simple control functions such as remote enquiry of measured values for two HART sensors
Ürün detaylariVEGAMET 391

Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry
Ürün detaylariVEGATOR 141

VEGATOR 142

VEGASCAN 693

Measured value indication and remote enquiry of measured data for up to 15 HART sensors
Ürün detaylariPLICSMOBILE T81

Measured data enquiry and remote parameter adjustment for a HART sensor
Ürün detaylariVEGATRENN 141

VEGATRENN 142

VEGATRENN 151

Single channel separator in two-wire technology for 4 … 20 mA sensors
€ 140.00
VEGATRENN 152

Double channel separator in two-wire technology for 4 … 20 mA sensors
€ 200.00
Aşırı voltaj koruması B 81-35

Aşırı voltaj koruması B 63-32

Overvoltage protection for Profibus PA and Foundation Fieldbus circuits
€ 170.00
Aşırı voltaj koruması B 63-48

Aşırı voltaj koruması B 62-30 W

Overvoltage protection for Profibus PA and Foundation Fieldbus circuits
€ 120.00
Aşırı voltaj koruması B 62-36 G

VEGACONNECT

Interface adapter between PC and VEGA instruments
Ürün detaylariVEGABOX 03

Breather housing with ventilation filter
Ürün detaylariProfibus PA/DP segment kuplörü

Simple segment coupler for up to 93.75 kbit/s DP-side
Ürün detaylariAseptik bağlantı için G1½ dişli adaptörü
VEGAFLEX Seri 80 Halat ve çubuk bileşenleri
FLEX 80 Aksesuar / Sonda uzatması

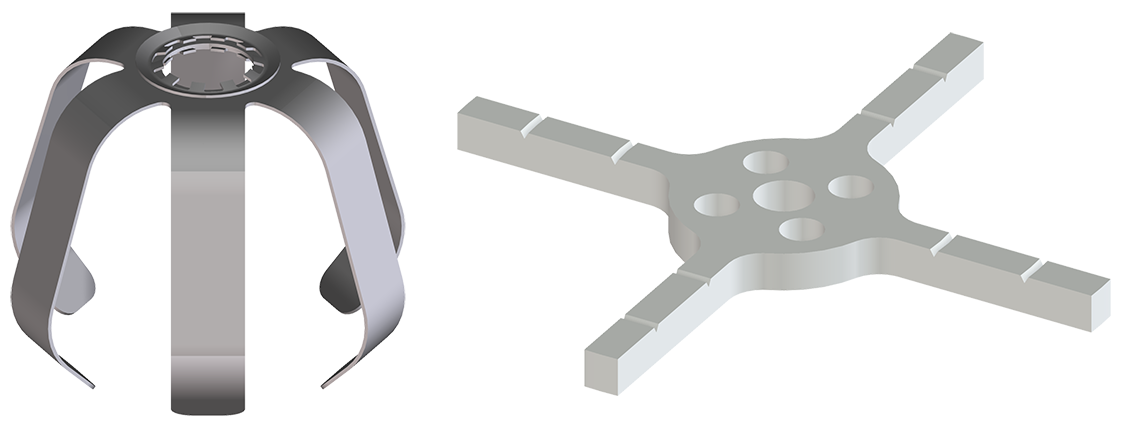

FLEX 80 Aksesuar / Merkezleme yıldızları

Spacers or centering weights fix the measuring probe in the middle of the tube.

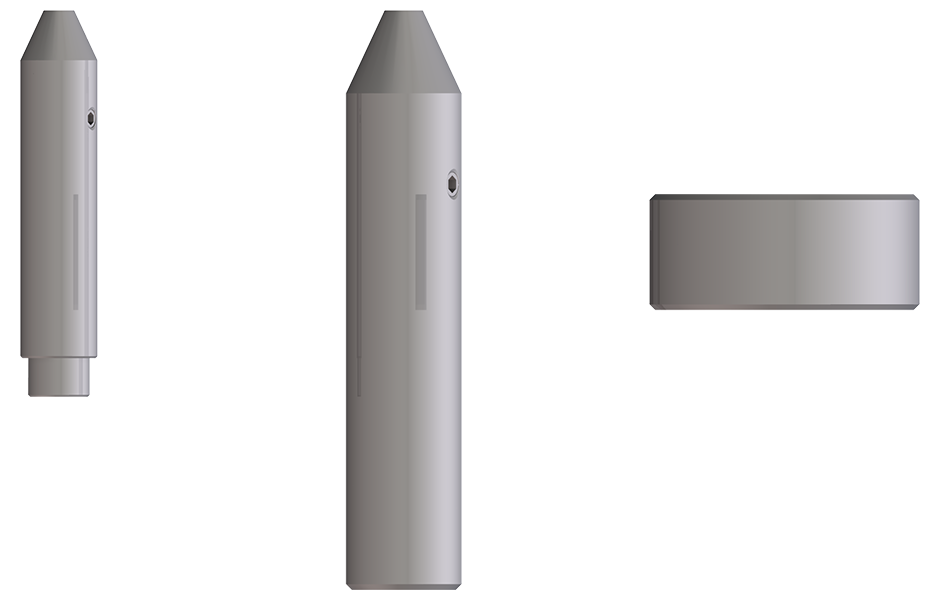

Ürün detaylariVEGAFLEX Serie 80 Zentrier-/Straffgewichte
FLEX80 Abspannvorrichtung Seilversion für FLEX81, FLEX86
Antenna extension PLICSMOBILE
VEGADIS Adaptörü

For connection of an external display and adjustment unit or a Secondary sensor.
Ürün detaylariElektronik VEGAFLEX Seri 80
Prozessbaugruppe VEGAFLEX 81
PLICSMOBILE SMA bağlantılı vidalanabilir soket
Elektronik PLICSMOBILE Serie 80
