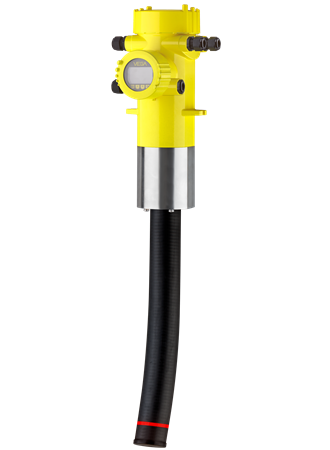

FIBERTRAC 32

Radiometric sensor for continuous level and interface measurement

Flexible detector with higher accuracy


FIBERTRAC 32

Uygulama sahasi

Bükülebilir dedektör, yuvarlak haznelerde ve çıkışı konik haznelerde kullanılır; sıvıların, katı maddelerin, çamur ve süspansiyonların ölçümlerine elverişlidir. FIBERTRAC 32, büyük sintilatör kesiti sayesinde daha yüksek hassasiyete ve doğruluğa sahiptir.
FIBERTRAC 32 is a radiation-based sensor for continuous measurement of liquids and bulk solids. It is suitable for level and interface measurement under extreme process temperatures, in aggressive media or under problematic product properties. Due to the bigger flexible plastic sensing element, FIBERTRAC 32 offers even quicker and more reliable measurement results, also under the harshest application conditions.

Yararlari

  • Simple mounting on round and conical vessels through flexible detector
  • High plant availability through non-contact measurement
  • Efficiency due to the large measuring range

Ürünü konfigüre et

Ürünü konfigüre et

Bu ürüne ait tüm dökümanlar ve yazılımlar İndirme Merkezimizde bulunabilir.

Tüm indirilenleri göster
Uygulama
Teknik veriler
Dökümanlar
Aksesuar
Ürünü konfigüre et
Teknik veriler
Measuring range - Distance
  • 7 m [Meter - Foot]
Process temperature
  • - [°C - °F]
Process pressure
  • - [Bar - kPa - psi]
Accuracy
  • ± 0.5 %
Density
  • Density
Materials, wetted parts
  • No wetted material
Threaded connection
  • Mounting from outside via supplied mounting brackets
Seal material
  • no media contact
Housing material
  • Aluminium
  • Stainless steel (precision casting)
Protection rating
  • IP66/IP67
Output
  • Profibus PA
  • Foundation Fieldbus
  • Four-wire: 4 … 20 mA/HART
Ambient temperature
  • -20 ... 50 °C
Onaylar
Scope
  • ATEX / Europe
  • CSA / Canada
  • FM / USA
  • EAC (GOST) / Russia
  • IEC / worldwide
  • NEPSI / China
  • INMETRO / Brazil
  • CCOE / India
  • KTL Korea
Explosion protection
  • Intrinsic safety "i"
  • Flameproof enclosure "d"
  • Dust ignition protection "t"
SIL qualification
  • SIL2
Gösterge ve kullanım
Adjustment
  • PLICSCOM
  • PC, PACTware and DTM
  • HART-Communicator
  • Software (e. g. AMS™, PDM)
  • Bluetooth
Indication
  • Display/adjustment module PLICSCOM
  • VEGADIS 81
  • VEGADIS 82
