VEGADIF 85

Differential pressure measurement for all media

带金属测量膜片


VEGADIF 85 - Differential pressure measurement for all media
VEGADIF 85

应用范围

适用于简单工艺条件下小容器中的液体。几乎所有工业部门都能找到可能的应用。
The VEGADIF 85 is a universal differential pressure transmitter for measurement of liquids, gases and vapours. Typical application areas are level measurement in pressurized vessels as well as flow measurement in combination with effective pressure transmitters. Further applications are pressure monitoring on filters as well as density and interface measurements.

您的获益

  • 有内置超载薄膜，工作安全性高
  • 测量值精确，保证最小差压测量
  • Multivariable sensor through integrated measurement of the absolute pressure

配置产品

配置产品

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
应用
技术参数
文件
配件
配置产品

其他应用

Turbine steam line

Turbine steam line

Flow measurement in the steam line

参考应用

水力发电厂内的压力管路

水力发电厂内的压力管路

水力发电厂内压力管路的破裂和泄漏检测

参考应用

反渗透装置

反渗透装置差压测量

反渗透装置差压测量

参考应用

Hydraulic oil station

Hydraulic oil station

Level and flow measurement in the hydraulic oil station

参考应用
技术参数
量程-压力
-40 ... 40 bar [Bar - kPa - psi]
过程温度
-40 ... 105 °C [°C - °F]
过程压力
-1 ... 400 bar [Bar - kPa - psi]
测量精度
0.065 %
接液材料
316L
钽
Alloy C276 (2.4819)
Monel
螺纹连接
¼ - 18 NPT
法兰连接
≥ DN32, ≥ 1⅜"
密封材料
EPDM
FKM
Copper
外壳材料
塑料
铝
不锈钢，精密铸件
不锈钢，经电解抛光
防护等级
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
输出
4 … 20 mA/HART
Profibus PA
Foundation Fieldbus
4 … 20 mA
环境温度
-40 ... 80 °C
许可证
适用范围
ATEX / 欧洲
FM/美国
IEC / 全球
UKR Sepro / 乌克兰
INMETRO / 巴西
CSA / USA and Canada
UKEX
防爆
Intrinsic safety "i"
Flameproof enclosure "d"
Dust explosion protection through housing "t"
船用许可证
DNV
GL
溢出保护
水资源法
VLAREM II
SIL认证
SIL2
显示与操作
操作
Plicscom
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
Bluetooth
显示
显示/操作模块 PLICSCOM
VEGADIS 81
VEGADIS 82

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。

现在配置

产品数据表

VEGADIF 85

4 … 20 mA/HART - 两线制

    • ZH
    • EN
    • US
    • DE
    • CS
    • DA
    • ES
    • FR
    • IT
    • KK
    • NL
    • NO
    • PL
    • PT
    • SV
    • TR
    • UK
下载

操作说明书

VEGADIF 85

4 … 20 mA - 两线制

    • ZH
    • EN
    • DE
    • CS
    • DA
    • ES
    • FI
    • FR
    • HU
    • IT
    • KK
    • KO
    • NL
    • NO
    • PL
    • PT
    • SV
    • TR
    • UK
下载

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。

现在配置

该产品的更多下载

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
显示仪表
控制器
无线通信
安全栅
浪涌保护器
设备组件
配件
备件
我们的建议

PLICSCOM

Measured value indication and adjustment of plics® sensors

产品细节

Bluetooth USB adapter

Wireless adjustment of sensors and instruments via Bluetooth

产品细节

VEGADIS 81

Remote measurement value indication and adjustment of plics® sensors

产品细节

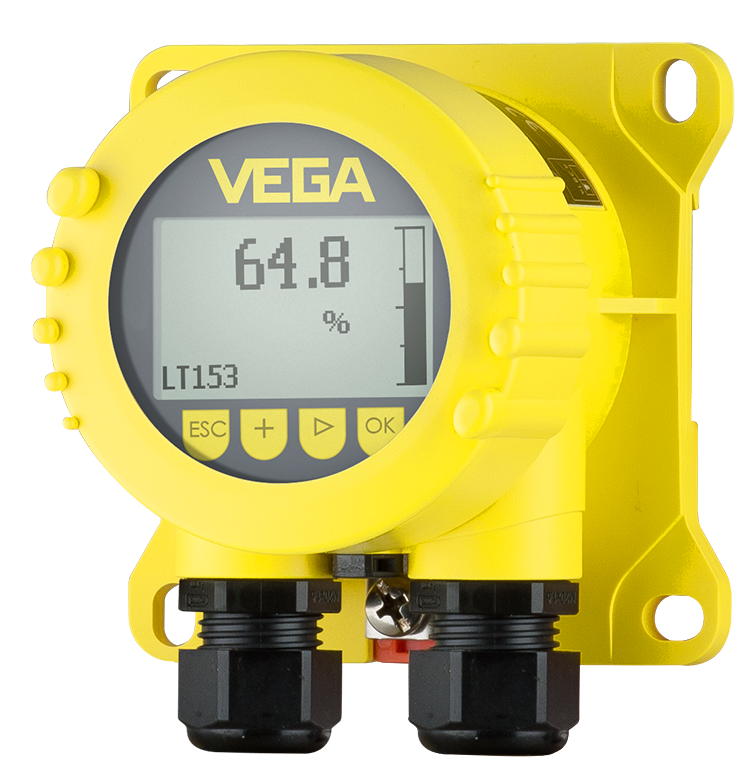

VEGADIS 82

External measured value display and adjustment for 4 ... 20 mA/HART sensors

产品细节

VEGADIS 176

Abgesetzte Anzeige zum Einsatz in 4 … 20 mA-Stromschleife

产品细节

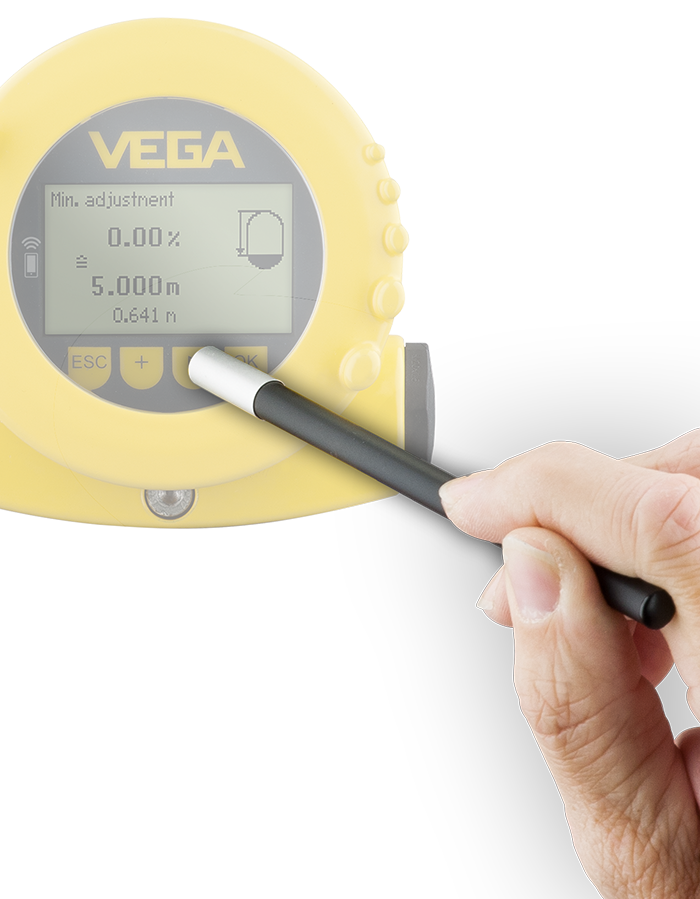

Magnetic pen for display/adjustment module PLICSCOM

PLICSCOM Magnet Pen

Magnetic pen for on-site adjustment

产品细节

VEGAMET 141

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

产品细节

VEGAMET 142

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

产品细节

VEGAMET 341

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

产品细节

VEGAMET 342

2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

产品细节

VEGAMET 841

1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

产品细节

VEGAMET 842

2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

产品细节

VEGAMET 861

1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

产品细节

VEGAMET 862

2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation

产品细节

VEGAMET 624

测量值显示和简单的调节控制功能以及测量值远程应答，用于4 ... 20 mA/HART传感器

产品细节

VEGAMET 625

测量值显示和简单的调节控制功能以及测量值远程应答，用于2个HART传感器

产品细节

VEGAMET 381

测量值显示和简单的调节控制功能

产品细节

VEGAMET 391

Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry

产品细节

VEGATOR 141

Transmission of 4 ... 20 mA signals for level signalling

产品细节

VEGATOR 142

Transmission of 4 ... 20 mA signals for level signalling

产品细节

VEGASCAN 693

测量值显示以及测量值远程应答，用于可达15个HART传感器

产品细节

PLICSMOBILE T81

externe-GSM-GPRS-Funkeinheit

Measured data enquiry and remote parameter adjustment for a HART sensor

产品细节

VEGATRENN 141

Einkanaliger Speisetrenner für 4 … 20 m/HART-Sensoren

Single channel separator for 4 … 20 m/HART sensors

产品细节

VEGATRENN 142

Zweikanaliger Speisetrenner für 4 … 20 m/HART-Sensoren

Double channel separator for 4 … 20 m/HART sensors

产品细节

VEGATRENN 151

Einkanaliger Trennübertrager in Zweileitertechnik für 4 … 20 mA-Sensoren

Single channel separator in two-wire technology for 4 … 20 mA sensors

产品细节

VEGATRENN 152

Zweikanaliger Trennübertrager in Zweileitertechnik für 4 … 20 mA-Sensoren

Double channel separator in two-wire technology for 4 … 20 mA sensors

产品细节

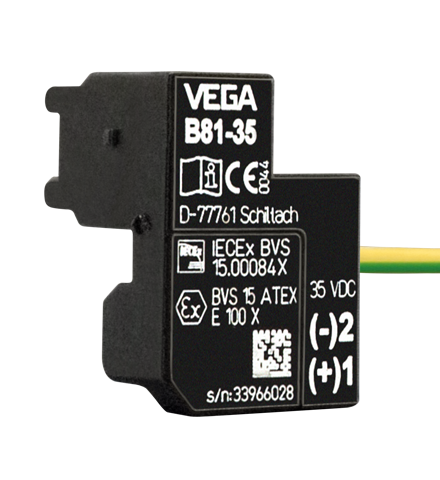

Overvoltage protection B 81-35

Pluggable overvoltage protection for supply and signal cables

产品细节

B 63-32

Overvoltage protection for Profibus PA and Foundation Fieldbus circuits

产品细节

B 63-48

Overvoltage protection for two-wire circuits

产品细节

过电压防护 B 62-30 W

Overvoltage protection for Profibus PA and Foundation Fieldbus circuits

产品细节

过电压防护 B 62-36 G

Overvoltage protection for two-wire circuits

产品细节

VEGACONNECT

Interface adapter between PC and VEGA instruments

产品细节

VEGABOX 03

Breather housing with ventilation filter

产品细节

以太网开关Ethernet

up to 8 RS45 pluggable

产品细节

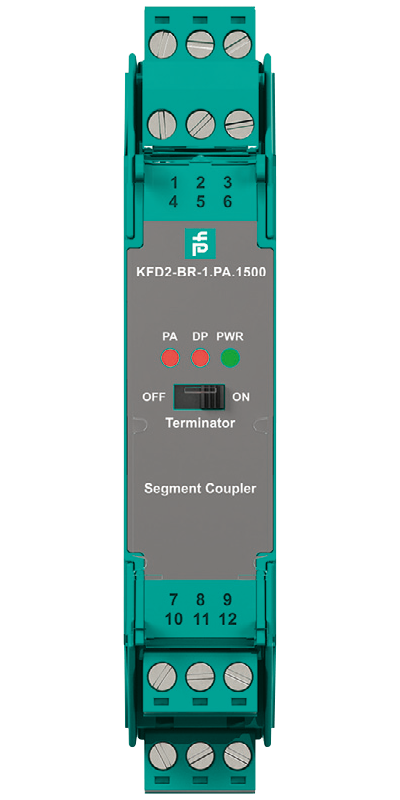

Profibus-PA/DP-分段耦合器

Simple segment coupler for up to 93.75 kbit/s DP-side

产品细节

排气阀

No image available

Vent valves allow venting of the measuring chambers of differential pressure transmitters.

产品细节

椭圆法兰接口

Oval flange adapter

Oval flange adapters according to IEC 61518 enable the connection of pipelines with ½ NPT to differential pressure transmitters.

产品细节

填球角 用于VEGADIF

No image available

Mounting angle for wall or tube mounting.

产品细节

阀门组

Valve block

Valves are used as shut-off device when connecting differential pressure transmitters to the process as well as for pressure equalisation of the measuring chambers during setup.

产品细节

闭锁螺钉

No image available

Closing plugs are used to cover the open side of measuring chambers of pressure transmitters.

产品细节

备用螺栓，用于阀门组

No image available

产品细节

Process component VEGADIF 85
